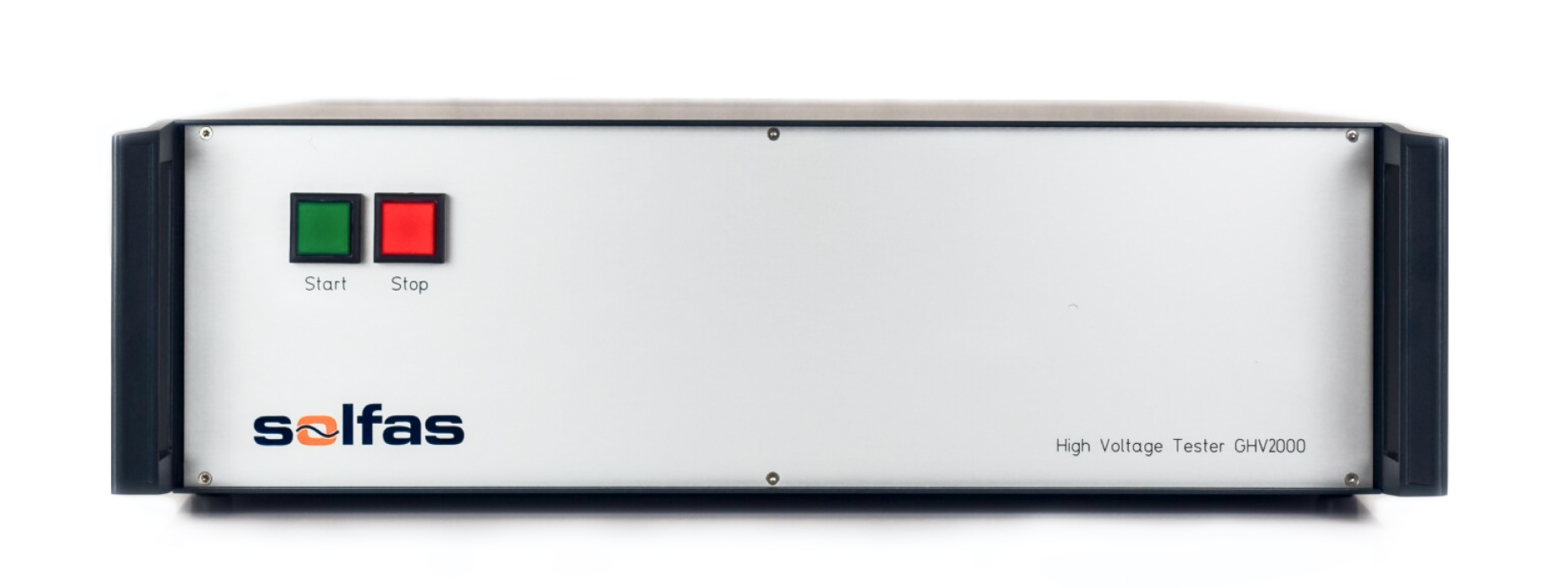

GHV2000 Series – 6kV AC High Voltage Safety Testers
The GHV2000 are high voltage testers for dielectric testing of all types of electronic devices and electrical components such as chokes, transformers, coils and other winding goods. They are equipped with an electronic AC source, voltage regulation and adjustable overcurrent protection. This makes them accurate, fast and safe to use. DC high voltage and insulation resistance testing are available as options. Ground bond testing with current up to 30A is another option.
Full remote control makes them ideal for system integration. An easy-to-use software for operating the device is included.
Features
- Output voltage 0.1…6kV AC
- Output current 100mA, adjustable overcurrent limit
- Electronic voltage source
- High accuracy measurements and precise regulation
- Fast voltage adjustment, adjustable voltage ramp function
- USB2.0 and 10/100 Mbit ethernet interfaces
- Full remote control with SCPI commands
- Safety features for systems according to EN50191
- Compact Size, 19’’ 3RU, 449x133x495mm, 20kg
Functions
Technical Specifications
| Voltage | 0…6kV AC |
| Current | 100mA, >200mA in short circuit |
| Frequency | 50Hz or 60Hz |
| Power | 500VA |
| Measurements | Voltage range 0…6000V AC Current ranges 1mA, 10mA, 100mA AC Accuracy 0.2% ±0.2% of range |
| DC High voltage test (Option –DC) |
Test voltage 100…6000V DC Current ranges 1mA, 10mA, 100mA DC Accuracy 0.2% ±0.2% of range |
| Insulation resistance test (Option –IR) (includes –DC option) |
Test voltage 100…6000V DC Ranges 10MΩ, 100MΩ, 1GΩ, 10GΩ Accuracy 2% ±0.2% of range |
| Ground bond test (Option –GB) |
Test current 1…30A AC Measuring range 0…500mΩ Accuracy 0.5% ±2mΩ |
| Safety features | Connection for external emergency stop, safety circuit and warning lamps |
| Power Supply | 88–264V AC, 47-63Hz |
| Dimensions (WxHxD) | 449x133x495mm (19“ 3RU) |
| Weight | 20.0kg |
