Product Description
The IND2000 systems are specially designed for high throughput routine tests of power chokes in industrial production. All tests are performed after a single connection, achieving high efficiency and safety. Automatic testing with test plans for every product and automatic test certificate generation speeds up the testing process, saves time and improves quality.
Key Benefits
Test Steps
Inductance with Sine Current
Precise measurement of inductance under sinusoidal current conditions
Inductance with Pulse Current
High-current pulse testing for saturation analysis
Winding Resistance
4-wire measurement for accurate resistance values
AC High Voltage
Dielectric strength testing up to 6kV
DC High Voltage
DC voltage testing for insulation verification
Insulation Resistance
High-precision insulation resistance measurement
Ground Bond
Protective earth connection testing
Surge Voltage
Surge immunity testing up to 6kV
Temperature Sensor
Temperature monitoring during testing

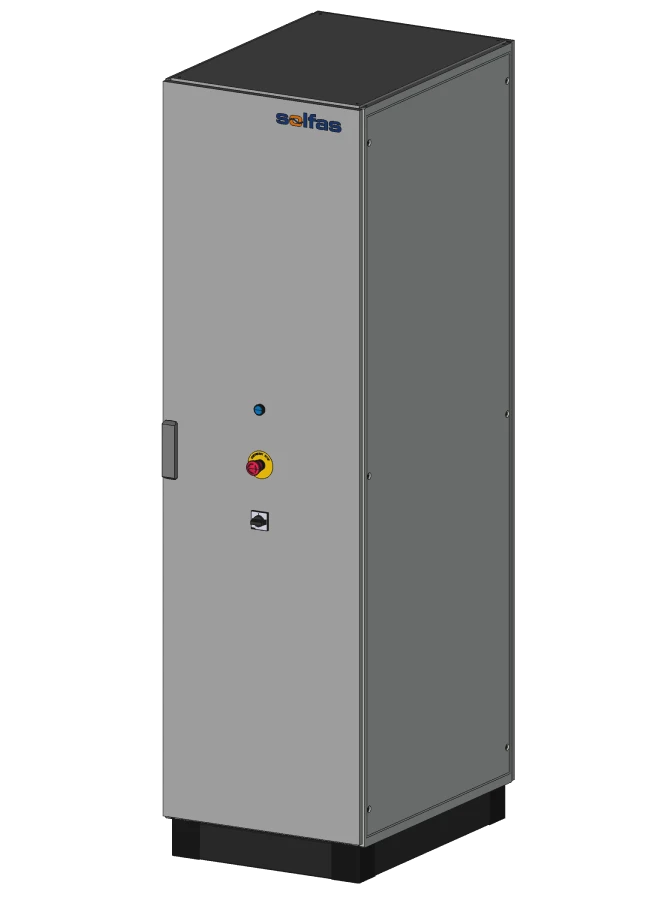

IND2000 – Impulse Testing Only
Basic model for impulse-only testing with high-voltage and safety features included.
• Output power: impulse only
• High-voltage test: 0.1–6 kV AC, up to 100 mA
• Pulse current testing with LI4000 (up to 4000 A / 4000 J / 450 V)
• Optional insulation, surge, and ground bond tests
• Safety circuit with emergency stop and door lock system
IND2000 with Sinus Measurement
Has the same Features as IND2000 but integrates also inductance measurement with 3-phase sine current with up to 250A. Inductance and losses are measured with a precision power analyzer.
IND2100
Inductance measurement up to 250A:
- 24V 250A
- 48V 125A
- 100V 60A
- 200V 30A
- 400V 15A

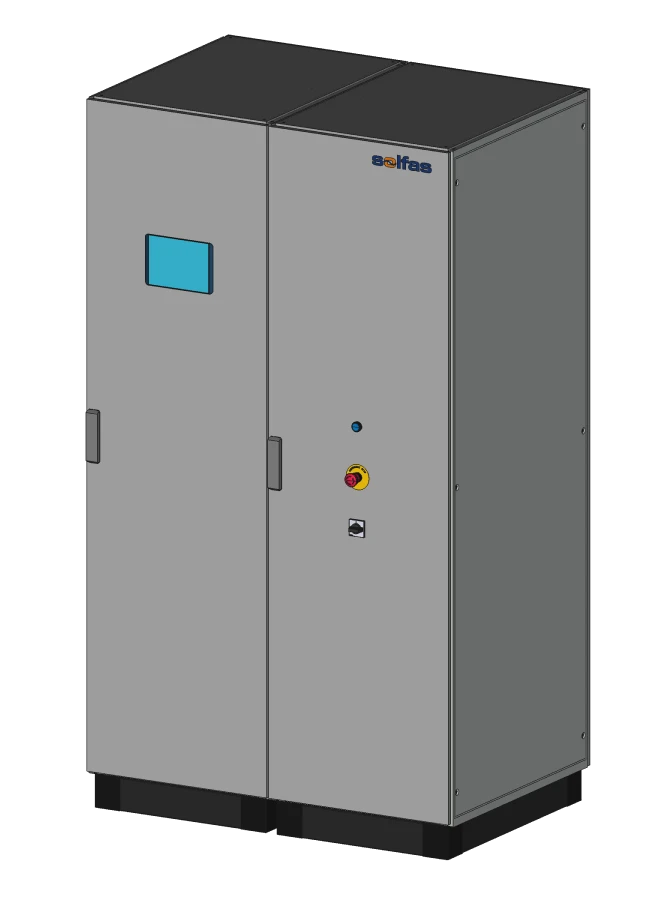

IND2200
Inductance measurement up to 500A:
- 24V 500A
- 48V 250A
- 100V 120A
- 200V 60A
- 400V 30A

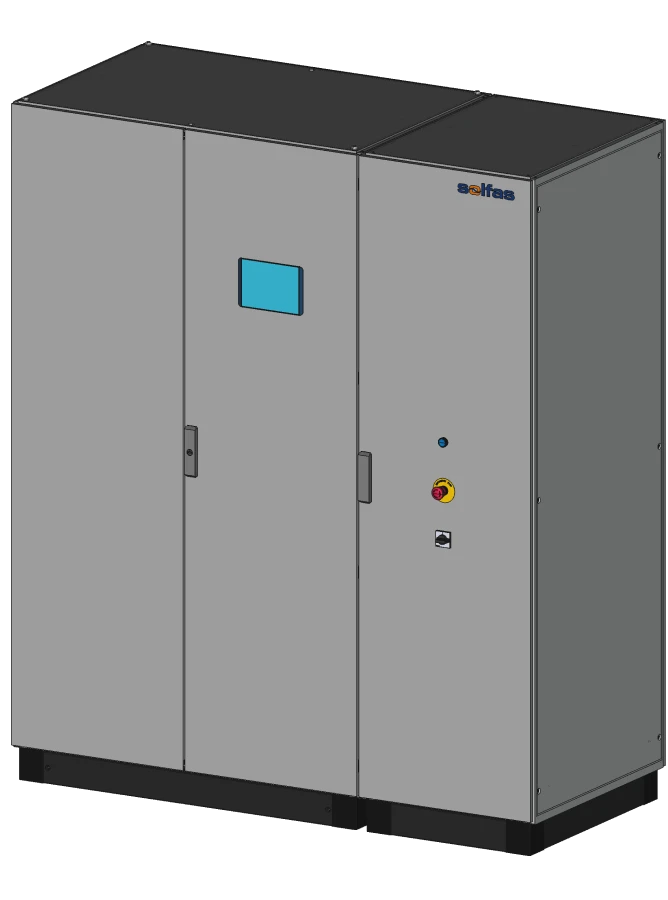

IND2400
Inductance measurement up to 1000A:
- 24V 1000A
- 48V 500A
- 100V 240A
- 200V 120A
- 400V 60A
Technical Specifications
| Model | IND2000 | IND2100 | IND2200 | IND2400 |
|---|---|---|---|---|
| Output power | Impulse only | 10 kVA | 20 kVA | 40 kVA |
| 3-Phase sine current Output power ranges | – | 24 V 250 A 48 V 125 A 100 V 60 A 200 V 30 A 400 V 15 A |
24 V 500 A 48 V 250 A 100V 120 A 200 V 60 A 400 V 30 A |
24 V 1000 A 48 V 500 A 100 V 240 A 200 V 120 A 400 V 60 A |
| Output frequency | – | 50 Hz – 200 Hz | ||
| Inductance measurement | – | Precision power meter, Basic accuracy 0.02% | ||
| Pulse current inductance measurement | With Solfas LI4000, Energy up to 4000 J, Current up to 4000 A, Voltage up to 450 V | |||
| Winding resistance | 4-wire measurement, basic accuracy 0.2% | |||
| High voltage test | 0.1 … 6 kV AC, current up to 100 mA | |||
| Ground bond test (Option) | Measurement current 5 … 30 A AC | |||
| Insulation resistance test (Option) | Test voltage 100 … 5000 VDC, Insulation resistance up to 10 GΩ | |||
| Surge voltage test (Option) | 0.1 … 6 kV | |||
| Safety features | Complete solution for safe testing according to EN50191 Emergency stop button loop, safety circuit for test cabin doors, warning lights |
|||
| Dimensions (WxHxD) | 600 x 2100 x 800 mm | 1200 x 2100 x 800 mm | 1200 x 2100 x 800 mm | 1800 x 2100 x 800 mm |
| Weight | 270 kg | 460 kg | 540 kg | 730 kg |
