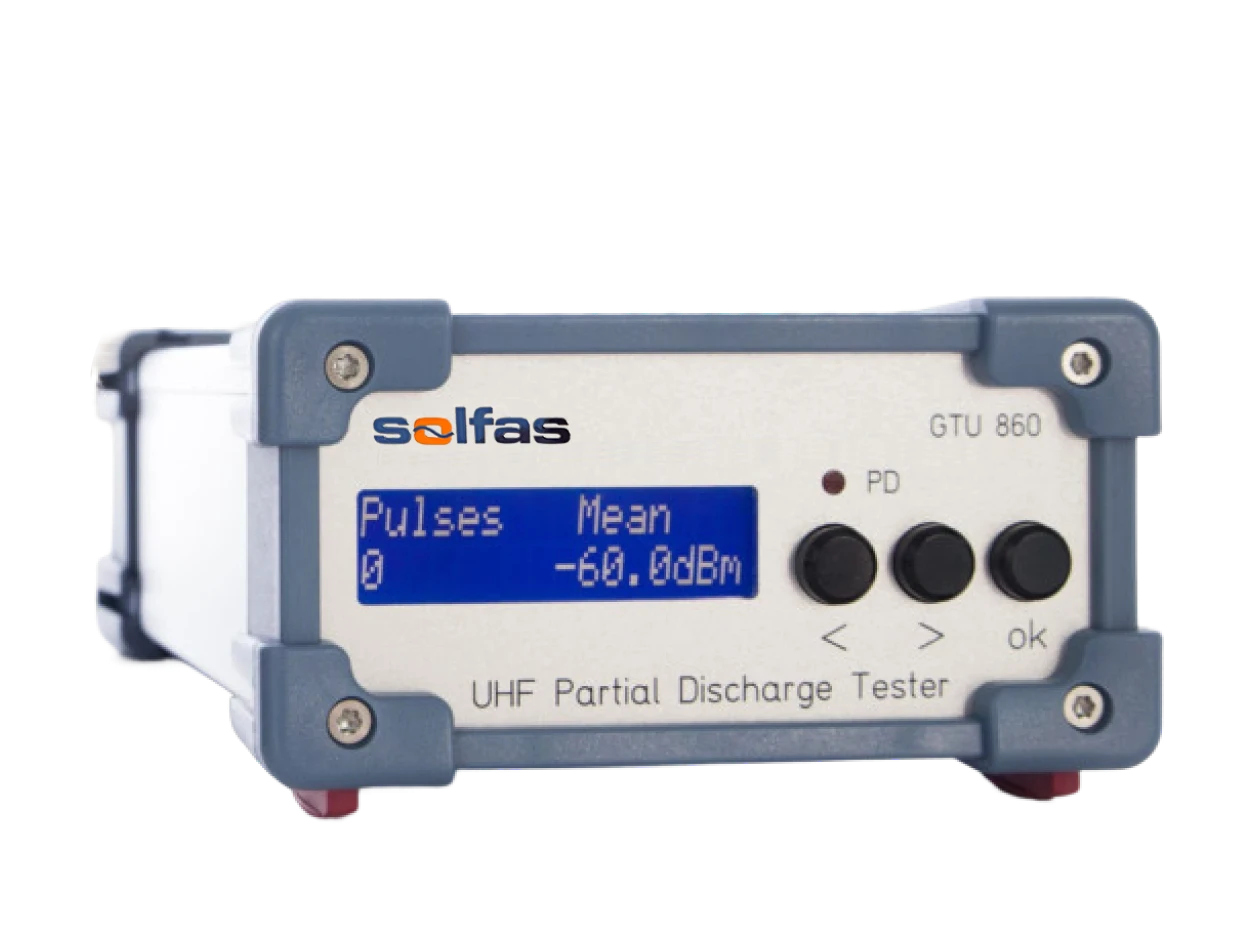

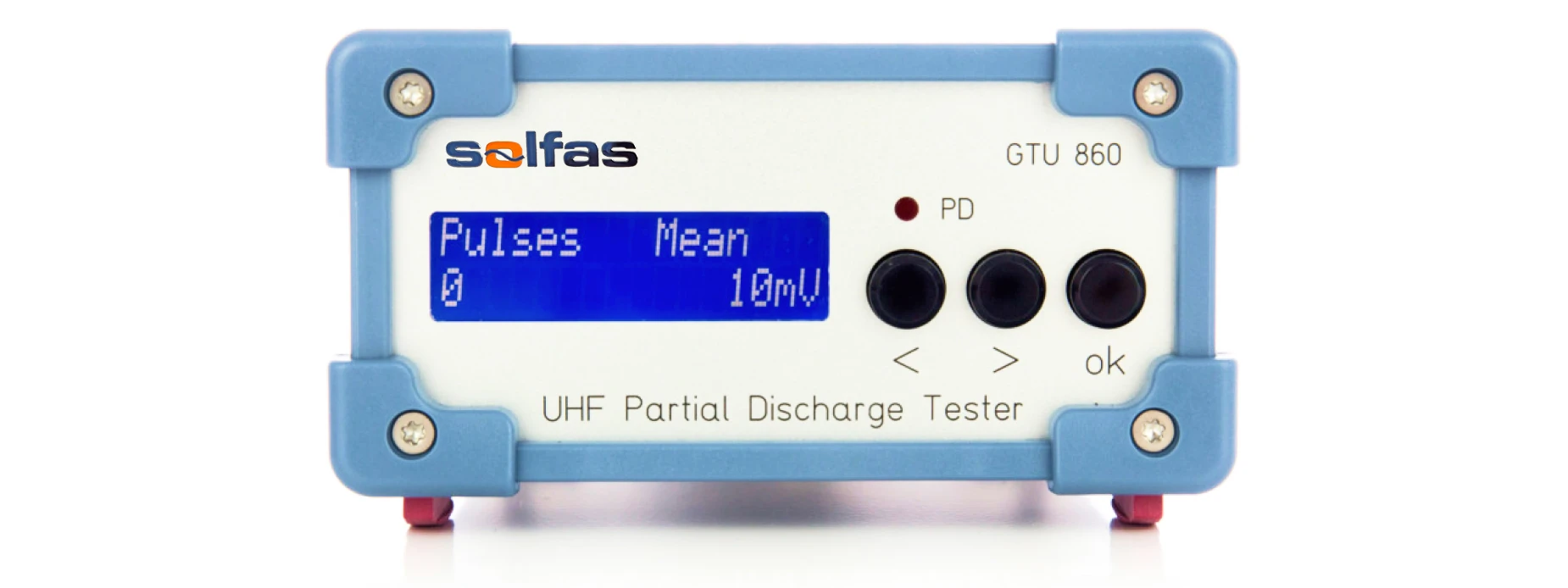

GTU860

Partial Discharge Tester

The GTU860 is a compact and versatile measuring device for various PD measurements. Due to its very sensitive PD detection in the UHF range and high interference suppression in the low frequency range, measurements with various test voltage forms are possible.

Request this product

Download Datasheet

Non-Destructive Testing for Reliable Products

PD measurements with the GTU860 and pulse shaped test voltages offer completely new possibilities for electrical motor testing. Now there is the ability to test the isolation between phases and single turns. This enables new non-destructive tests for more reliable products.

The Detection of Partial Discharges

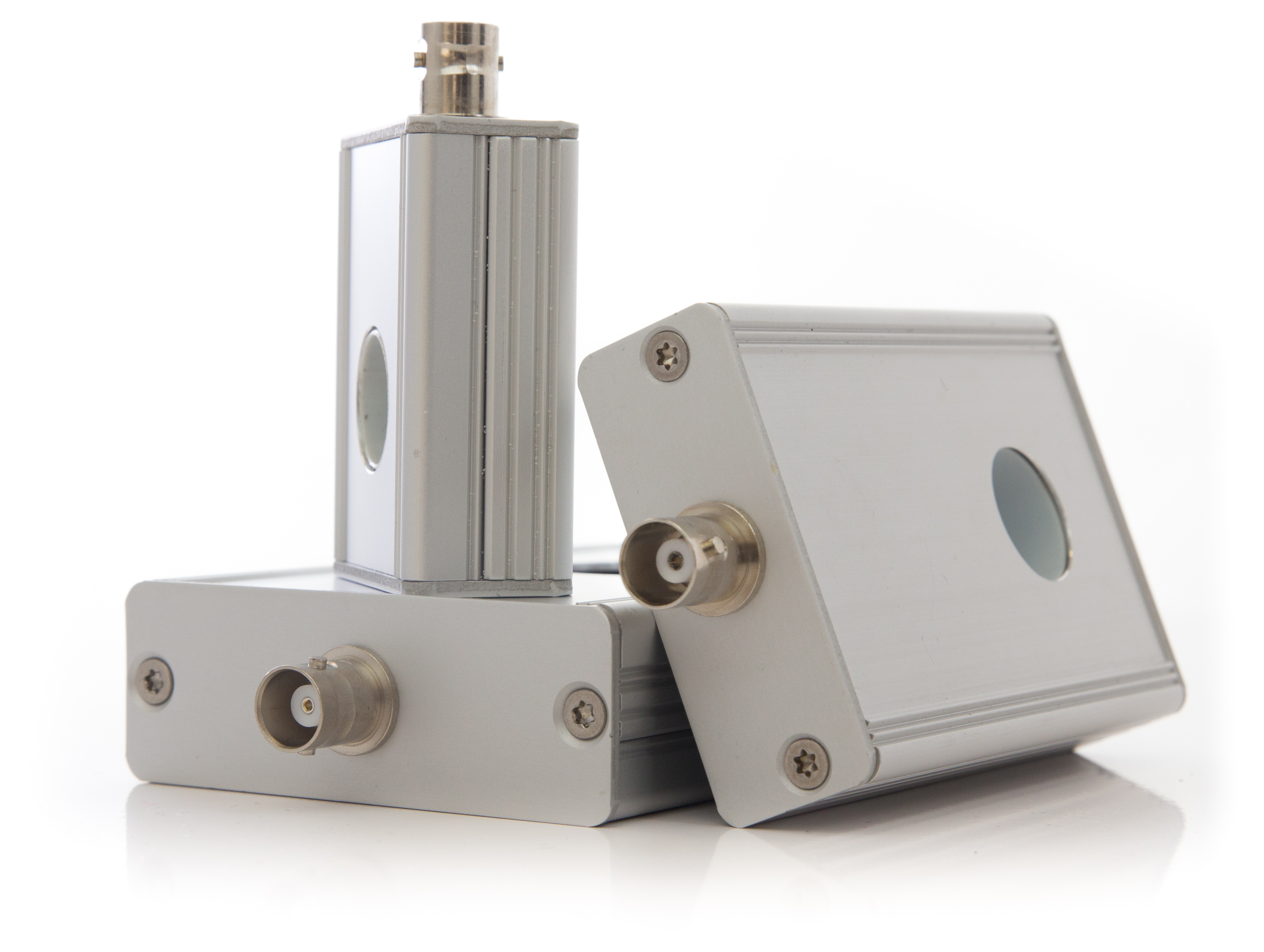

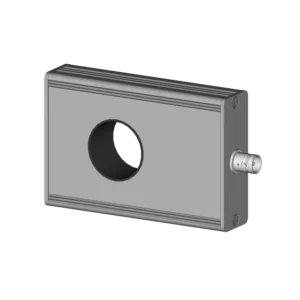

Partial discharges are detected with an HF current transformer. The advantage is the isolation to the high voltage. The measurement is performed with a method developed by Solfas that works in the UHF range with high sensitivity. The attenuation against interference in the frequency range below 100 MHz is very high, which allows measurements with pulsed voltages such as converter output voltages.

✓ HF current transformer

✓ Isolated to high voltage

✓ High sensitivity

Features

Standards Compliance

Designed for measurements according to IEC 60034-18-41, IEC 60034-27-5 and IEC/TS 61934.

PD Signal Output

BNC output provides access to the pre-processed partial discharge signal.

PD Activity Indicator

Dedicated LED provides quick visual indication of partial discharge activity.

HF Signal Processing

High-frequency filtering for optimum suppression of low frequency disturbances.

Trigger & Gating Input

External trigger input enables synchronized suppression of disturbances.

Integrated Display

illuminated LCD for display of PD count and amplitude and device settings.

High Sensitivity Detection

Detects partial discharge activity with high measurement sensitivity.

Adjustable Trigger Threshold

Trigger levels can be adjusted to match specific measurement conditions.

Connectivity Interfaces

USB and Ethernet interfaces enable easy remote control and system integration.

Software

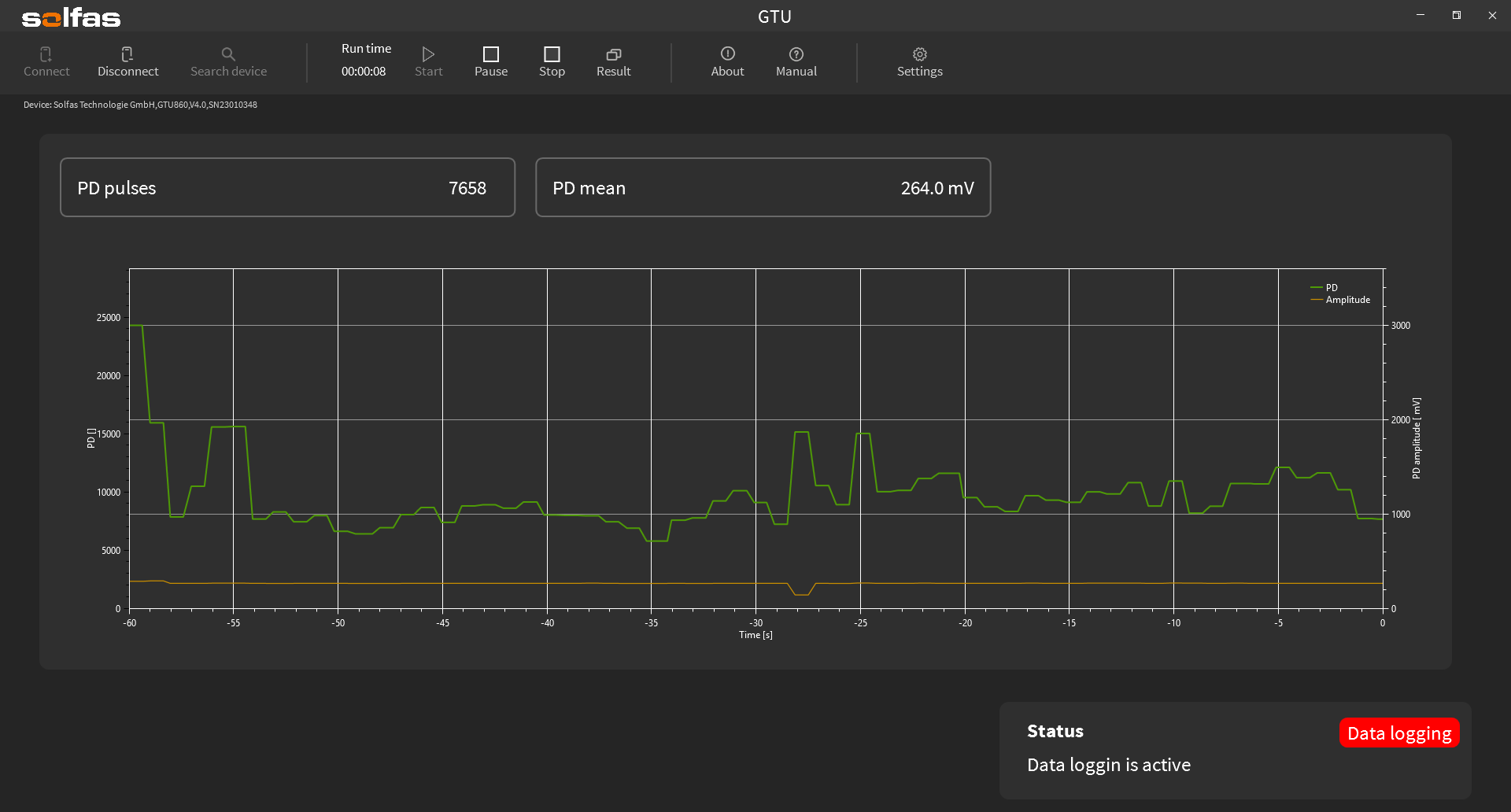

The GTU software is the perfect addition to the GTU860 PD tester. It allows complete remote operation and configuration of the instrument.
The continuous measurement mode for long term tests enables to record time-based PD pulses and amplitude.
The measured data are shown as a diagramm and can be exported to CSV.

Technical Specifications

Input HF	BNC 50Ω max. Input 1V/+13dBm
Output HF	BNC 600Ω max. Output 3.3V
Measurement Range	-60dBm … 0dBm
Measurement Accuracy	± 2dBm
Frequency Range	200 … 400 MHz
Attenuation in Stopband	≥ 60dB
Min. Single Impulse Spacing	< 50µs can be resolved
Timebase Accuracy	± 1%
Interfaces	USB 2.0 / Ethernet
Power Supply	Via USB or 5 … 24V DC
AC Power Adapter Input	80 … 240V AC
Dimensions (WxHxD)	115x60x185 mm
Weight	725g
