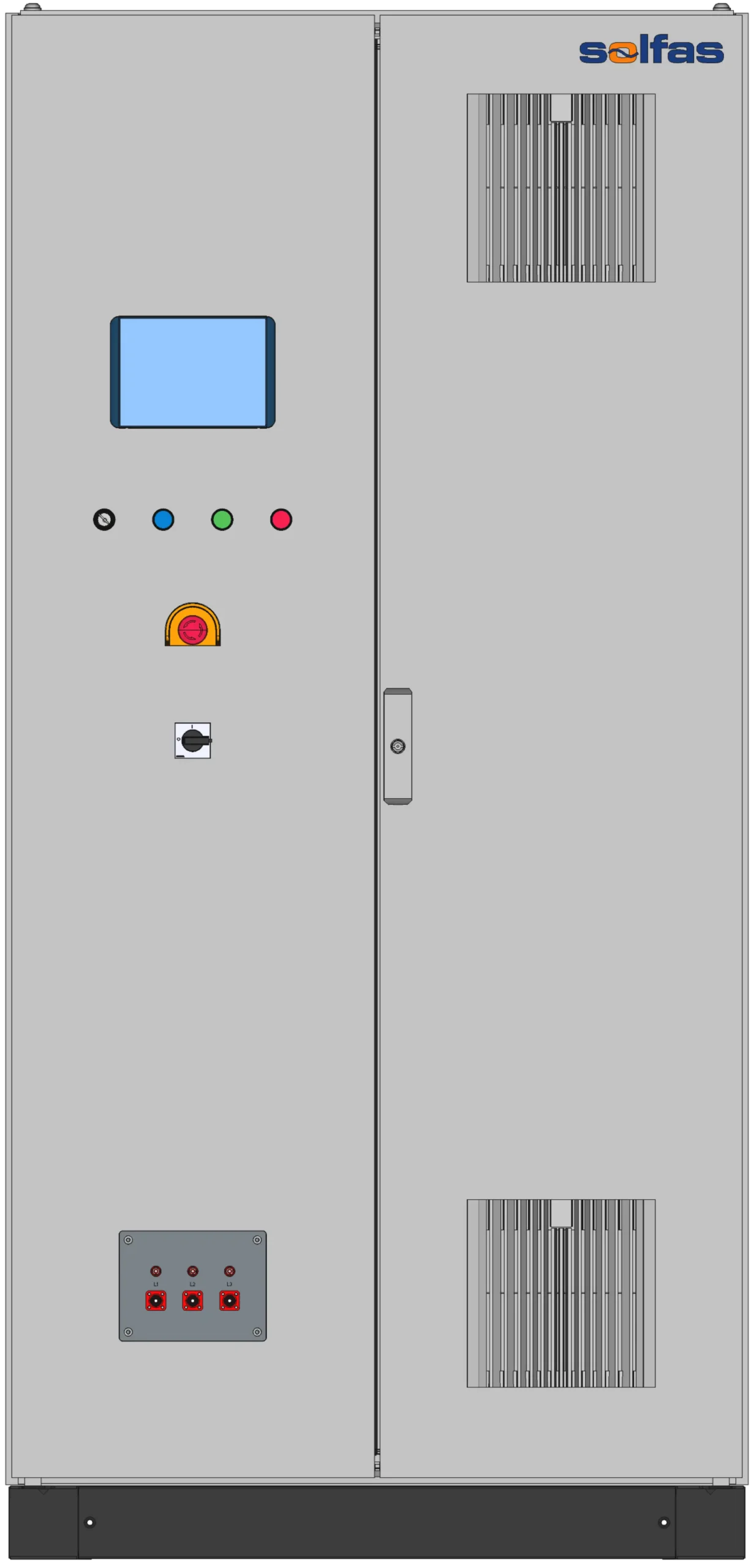

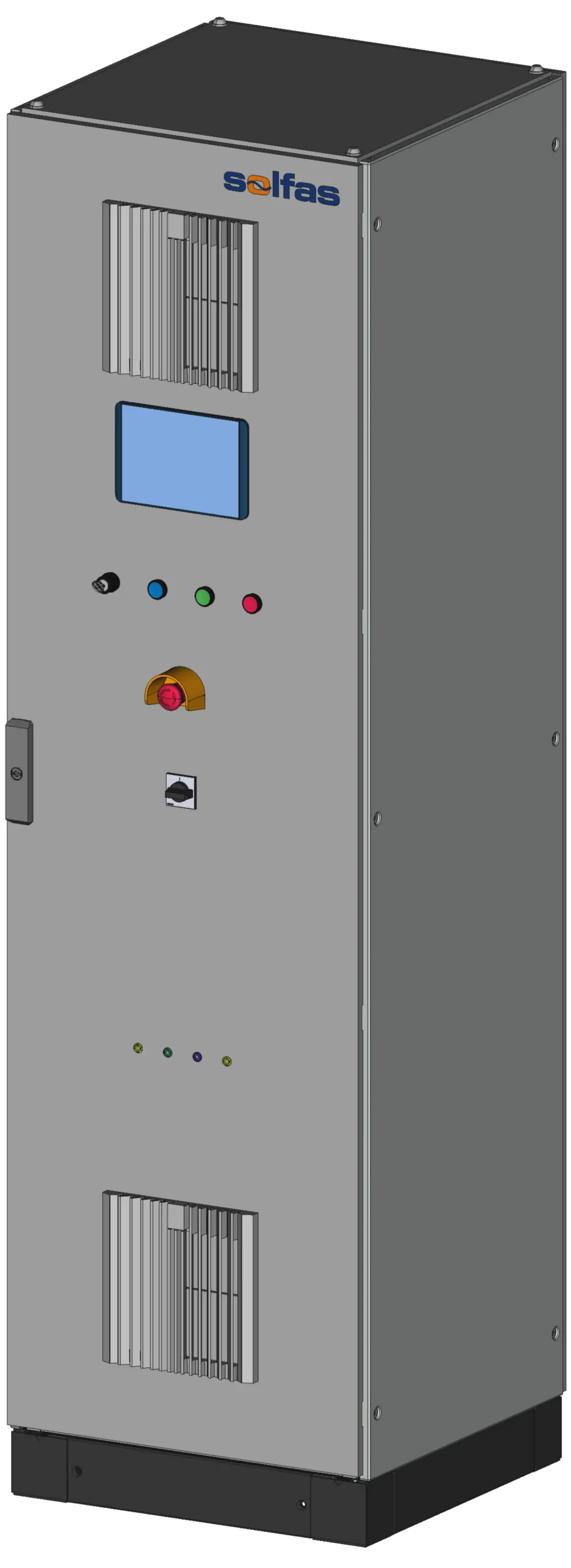

IVT1000 SERIES
Precision Induced Overvoltage Testing
for Modern Transformer Production
The IVT1000 Series is a programmable induced overvoltage test system for routine and type testing
of power transformers according to IEC 60076-3. With a low-distortion three-phase AC power
source, integrated measurement capabilities and fully programmable test sequences,
it delivers reliable, repeatable and standards-compliant transformer testing
for production and laboratory environments.
Key Benefits
Features
IEC 60076-3 Compliant
Designed specifically for induced AC voltage tests according to IEC 60076-3.
Adjustable Output Frequency
Programmable frequency from 50 to 200 Hz for flexible transformer testing.
Adjustable Output Voltage
Precise voltage control up to 1000 V for induced overvoltage applications.
Low Distortion Output
Stable sinusoidal output with low distortion for accurate measurements.
Precision Measurements
Integrated calibrated measurements ensure accurate and repeatable test results.
Digital Voltage Control
Maintains constant output despite changing input voltage or load conditions.
Scalable Power Options
Multiple power ratings available to match different transformer sizes.
Full Protection
Integrated protection against overload, short circuit, overvoltage and overtemperature.
Ethernet Remote Control
Integrated Ethernet interface with web interface enables remote control and system integration.
Precision Power Measurement
The IVT1000 integrates a factory-calibrated high-accuracy measurement system, eliminating the need for external measuring instruments during induced voltage testing. With better than ±0.5% measurement accuracy, all relevant electrical parameters are measured directly within the system, ensuring reliable and repeatable results in accordance with IEC 60076-3. Integrated Measurements The IVT1000 continuously monitors all essential electrical parameters throughout the complete test sequence:
- TRMS Voltages or AC Peak Voltages
- TRMS Currents
- Active, Reactive and Apparent Power
- Power Factor
All measurement channels are factory-calibrated to provide accurate, repeatable and standards-compliant results while simplifying test setup and reducing the need for additional instrumentation.
Stable Sinusoidal Output Voltage
The IVT1000 generates a low-distortion 3-phase sinusoidal output for induced AC voltage testing with controlled frequency and voltage levels.
Intuitive Operation

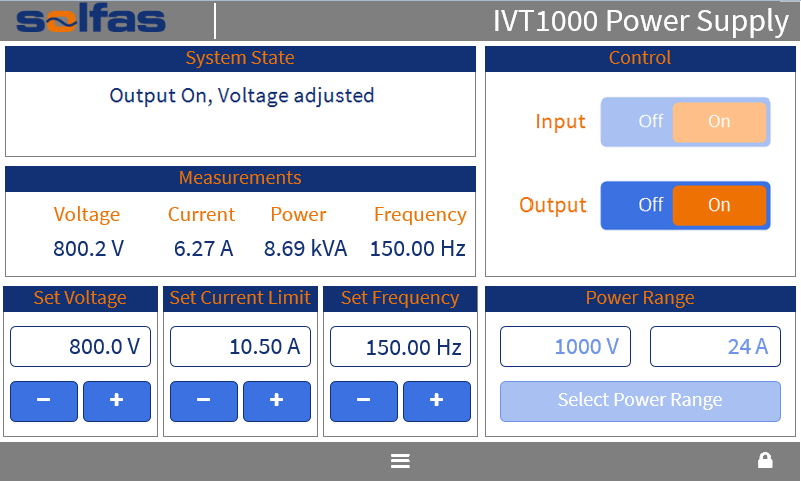

The IVT1000 is designed for fast and straightforward operation. Its integrated touch display provides direct access to all system functions, measured values and operating parameters, enabling efficient setup and reliable test execution.
For automated environments, the integrated Ethernet interface with web-based remote control allows convenient operation from any PC within the network. This simplifies system integration, remote monitoring and production automation without requiring additional software.
Applications
Routine & Type Testing
Perform reliable induced overvoltage tests for routine and type testing according to IEC 60076-3 with programmable voltage, frequency and precise digital control.
Ensure consistent test quality, reduce setup time and achieve fully repeatable test results.
Research & Development
Evaluate and validate transformer designs under varying electrical conditions with flexible output parameters and accurate measurements.
Accelerate product development while gaining valuable insights into transformer performance.
Partial Discharge Testing
Generate a stable, low-distortion AC voltage source for partial discharge measurements during induced voltage testing.
Provide low distortion voltage supply for sensitive PD measurements and reliable insulation assessment.
Induced AC Voltage Tests
– Requirements of the IEC standard
Induced AC voltage (ACSD) tests must be performed during routine and type tests at power transformers according
to IEC 60076-3. A symmetrical sinusoidal 3-phase voltage with at least twice the nominal frequency
is required for these tests. The test voltage is normally set to twice the nominal voltage.
The IVT1000 series meets exactly these requirements.

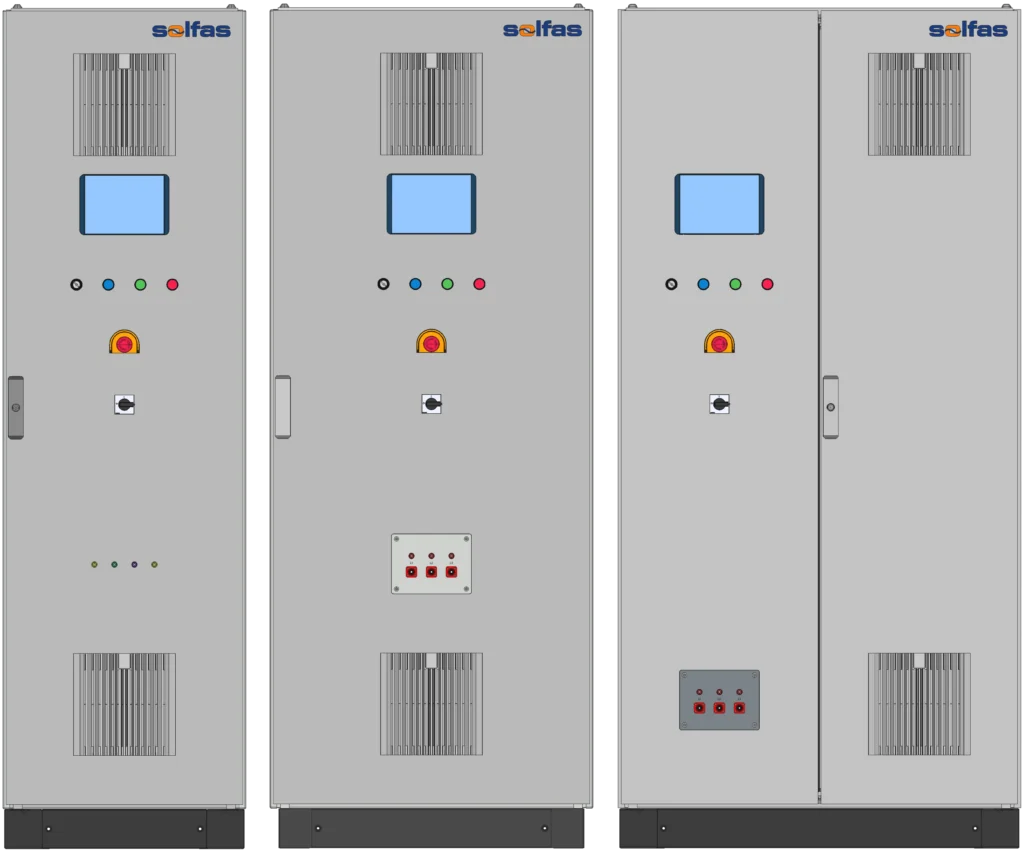

Technical Specifications
| Model | IVT1010 | IVT1020 | IVT1040 |
| Output Power | 10kVA | 20kVA | 40kVA |
| Output Ranges | 1000V 6A 1) 500V 12A 250V 24A | 1000V 12A 1) 500V 24A 250V 48A | 1000V 24A 1) 500V 48A 250V 96A |
| Output Frequency | 50-200Hz 1) | ||
| Distortion | <2% 2) | ||
| Input Voltage | 3AC 400V±5% 50-60Hz 1) | ||
| Input Current | 16A | 32A | 63A |
| Measurements | Voltage, current, power, power factor, frequency, accuracy better 0.5% | ||
| Protection | Overcurrent, overvoltage , temperature | ||
| Safety Features | Internal emergency stop, connection for external emergency stop, connection for one safety interlock, warning lights, key switch, start and stop buttons | ||
| Dimensions (WxHxD)[mm] | 600x2100x600mm | 800x2100x600mm | 1000x2100x600mm |
| Weight | 210kg | 320kg | 520kg |
| 1) other on request 2) at 50-100% of range | |||
