Fast Rise Time
The fast rise time allows measurements in the UHF range, which are required for PD measurements under short rise times and repetitive voltage pulses according to IEC/TS 61934.
Features

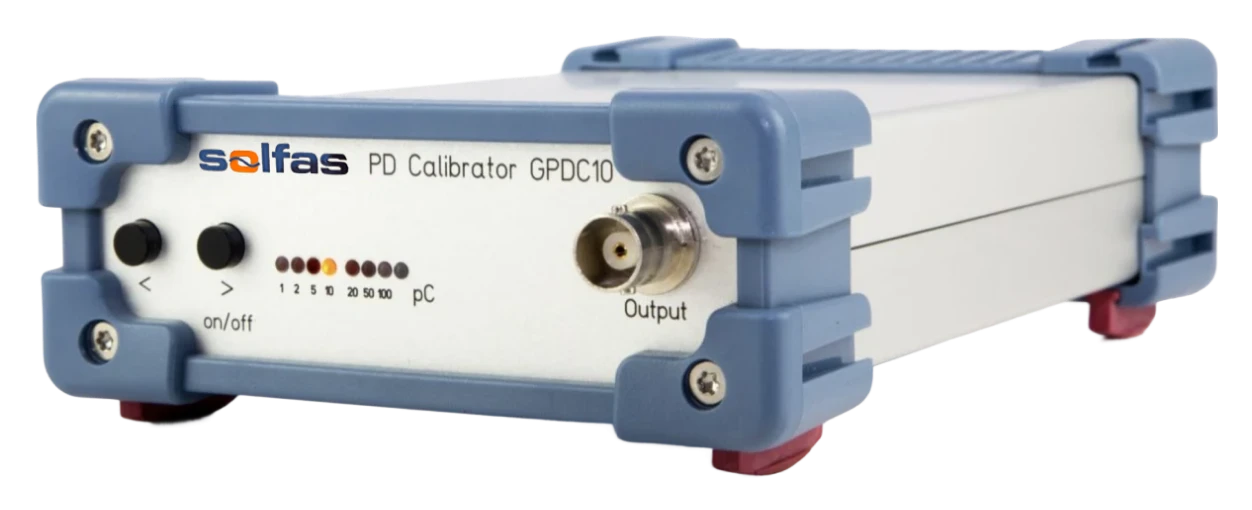

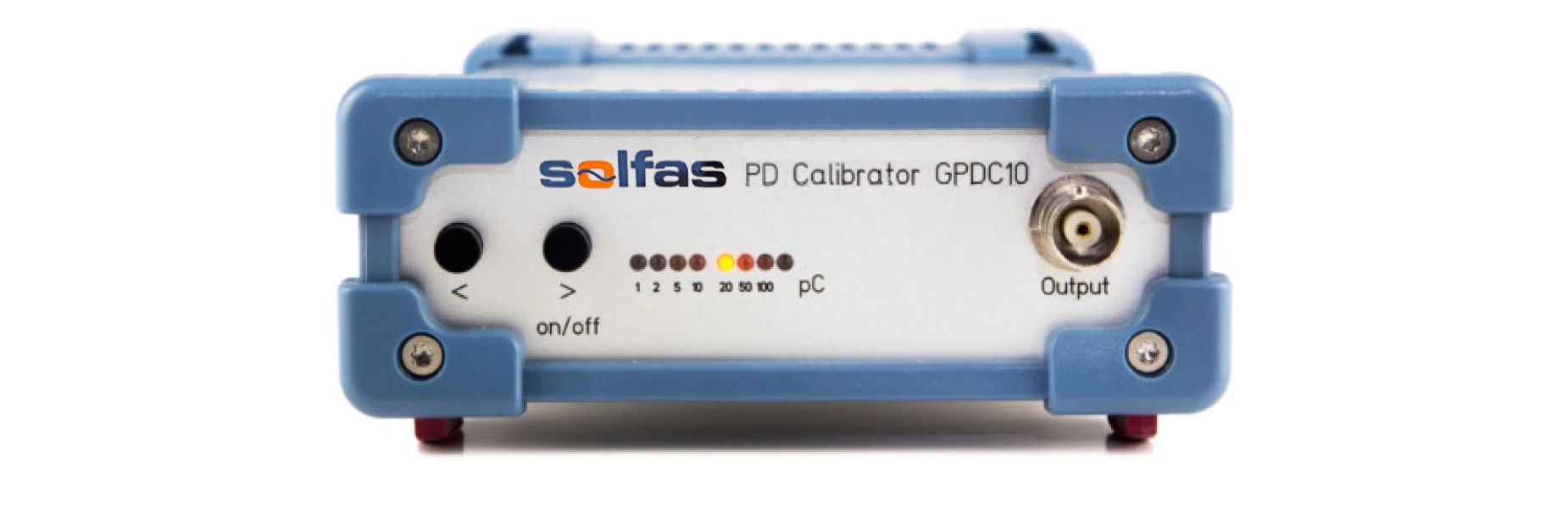

Calibrated charge and rise time
Ensures accurate and reproducible test conditions through calibration.
Selectable charge magnitude
Allows adjustment of charge levels to match different test requirements.
Fast rise time
Enables precise simulation of fast transient signals.
Compact size
Small and lightweight design for easy handling and portability.
Easy Operation
Compact design with simple two-button operation for charge adjustment.
Battery powered
Operates independently without the need for external power supply.
Technical Specifications
| Impulse charge | 1-2-5-10-20-50-100 pC (GPDC10-A ) 10-20-50-100-200-500-1000 pC (GPDC10-B) Accuracy 1% ± 0.5 pC (A) / ± 5 pC (B) |
| Impulse frequency | 100 Hz ± 0.1% |
| Impulse rise time | < 2.5 ns (GPDC10-A) < 3.5 ns (GPDC10-B) |
| Power Supply | 2x AA Battery |
| Dimensions | 115x50x180 mm |
| Weight | 600 g |
| Output connector type | BNC |
| Ordner numbers | GPDC10-A (1-100pC) GPDC10-B (10-1000pC) |
Applications
The GTU partial discharge tester can be used in diverse applications including
Electrical motor & stator testing
Ensure optimal performance and reliability of electric motors and stator windings.
Research and development
Utilize advanced testing solutions for the development and optimization of new technologies and products.
Transformer, choke & coil testing
Verify the reliable performance and quality of a wide variety of wire-wound components, such as chokes, transformers, and coils.
GPDC10 and GTU860
The Perfect Team

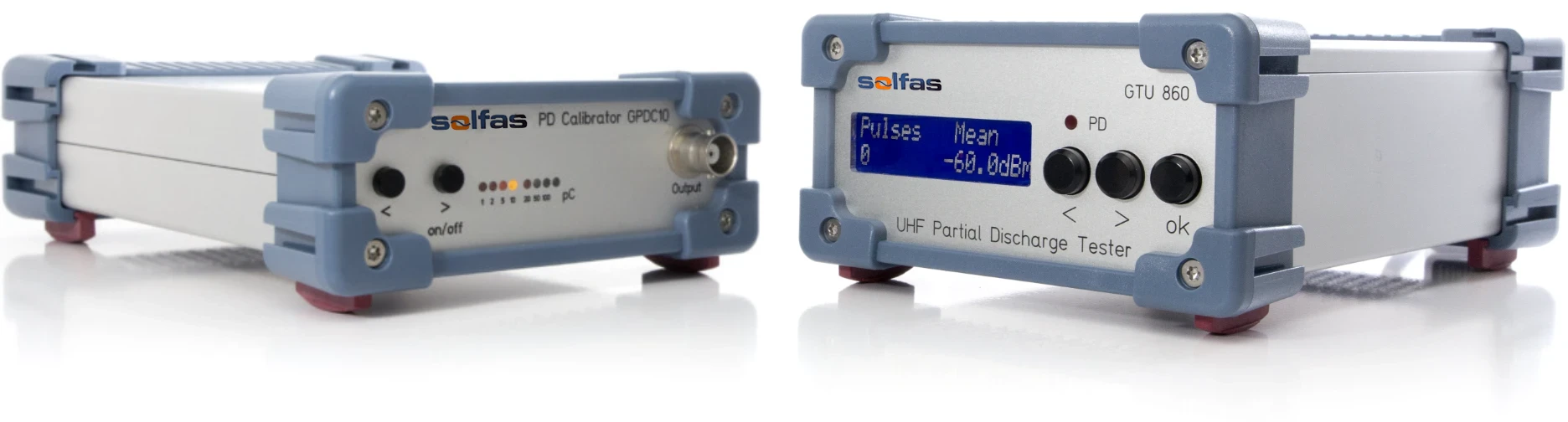

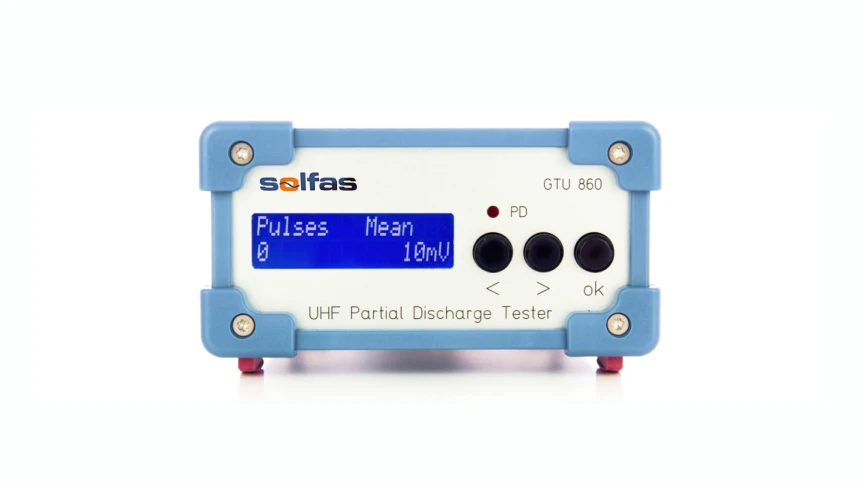

In combination with our GTU860 you are prepared for partial discharge measurments in the UHF range.
Simply connect the calibrator with the test setup including the GTU860 and easily check the sensitivity
for the partial discharge measurment by selecting a suitable charge magnitude.
Accessories
Essential add-ons for enhanced functionality
GPDC10 Accessories Set 250mm
Article number:
GPDC10-ACC-SET1
89,00 €

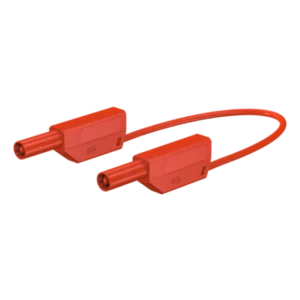

4mm safety connection accesories: BNC – 4mm socket adapter, 2 test leads 250mm, 2 connection clips
GPDC10 Accessories Set 1000mm
Article number:
GPDC10-ACC-SET2
89,00 €
4mm safety connection accesories: BNC – 4mm socket adapter, 2 test leads 1000mm, 2 connection clips
