ONE CONNECTION FOR ALL TESTS – HIGH THROUGHPUT

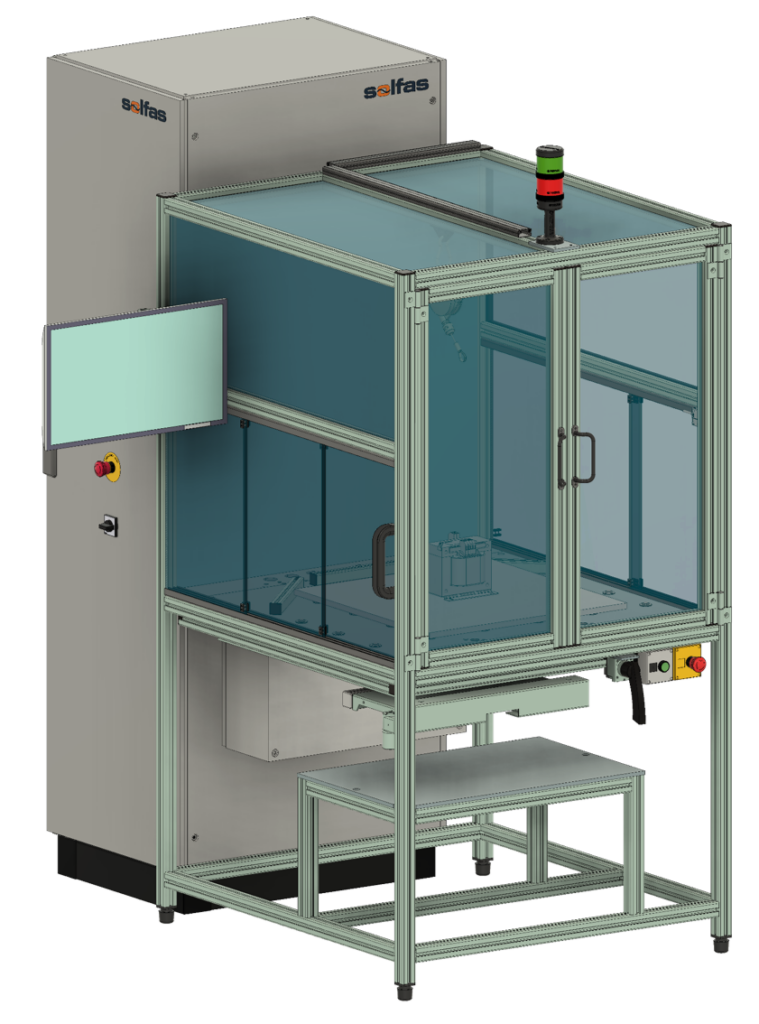

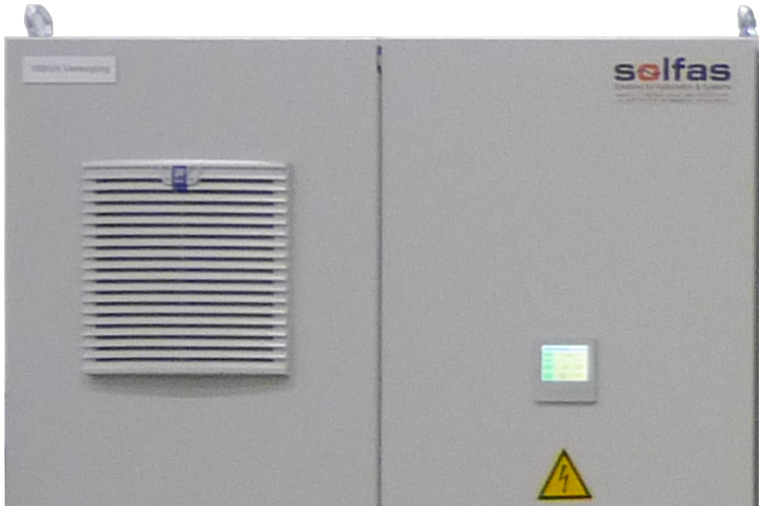

The IND2000 Systems are specially designed for high troughput routine tests of power chokes in industial production.
All test steps are performed after a single connection whereby a high efficiency and safety is achieved. Automatic testing with test plans for every product and automatic test certificate generation speed up testing process, safe time and improve quality.
TEST STEPS

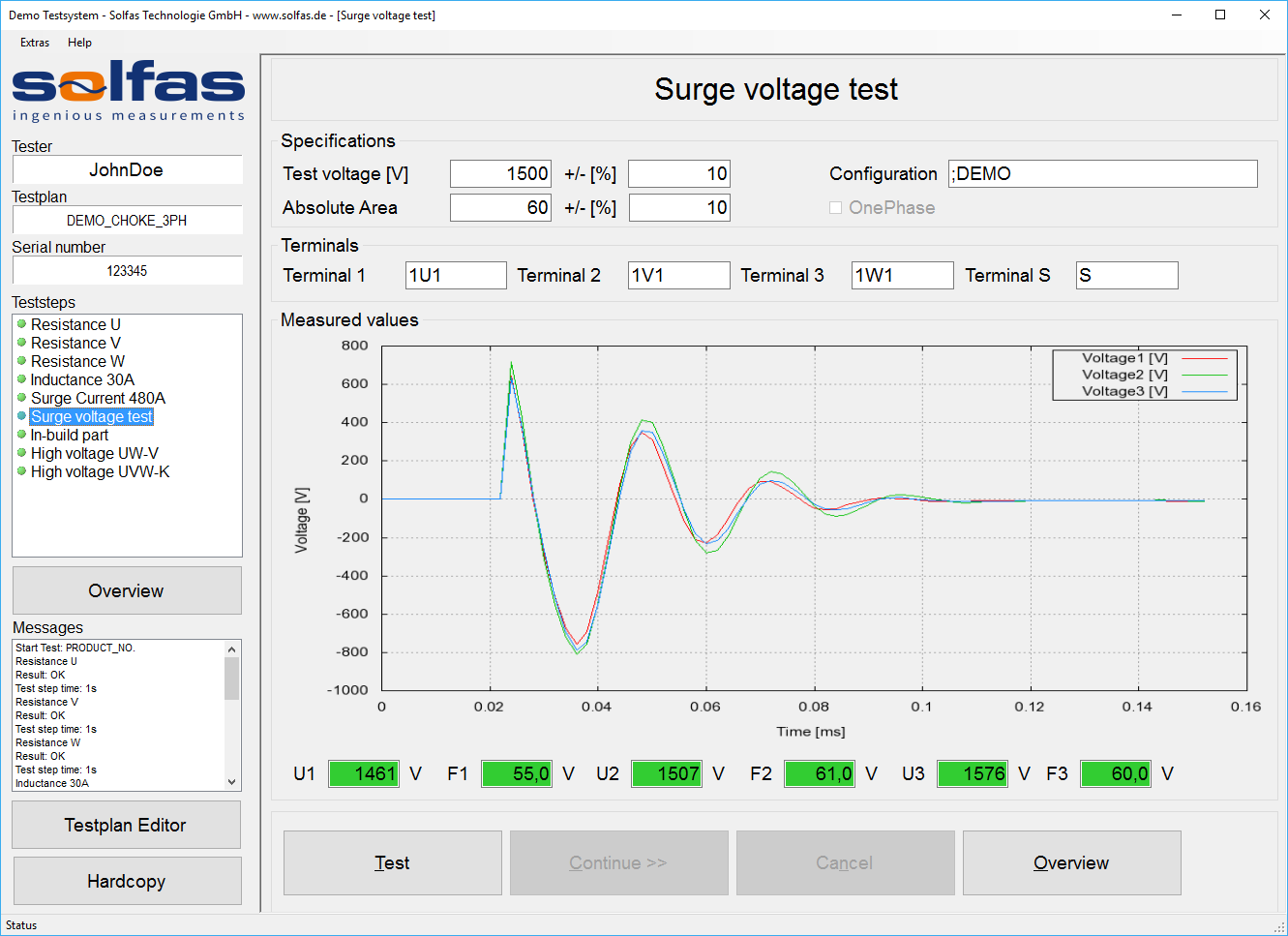

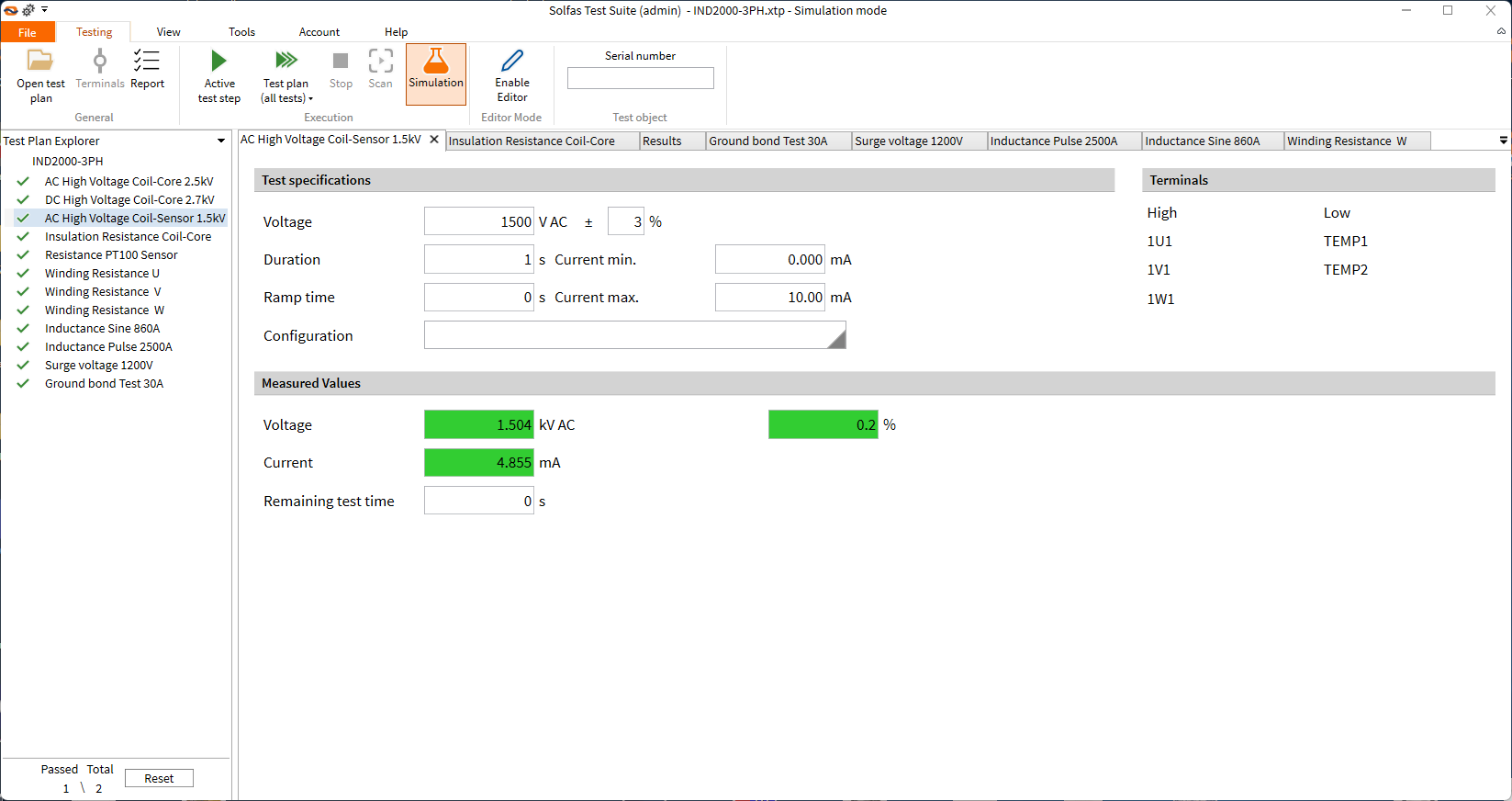

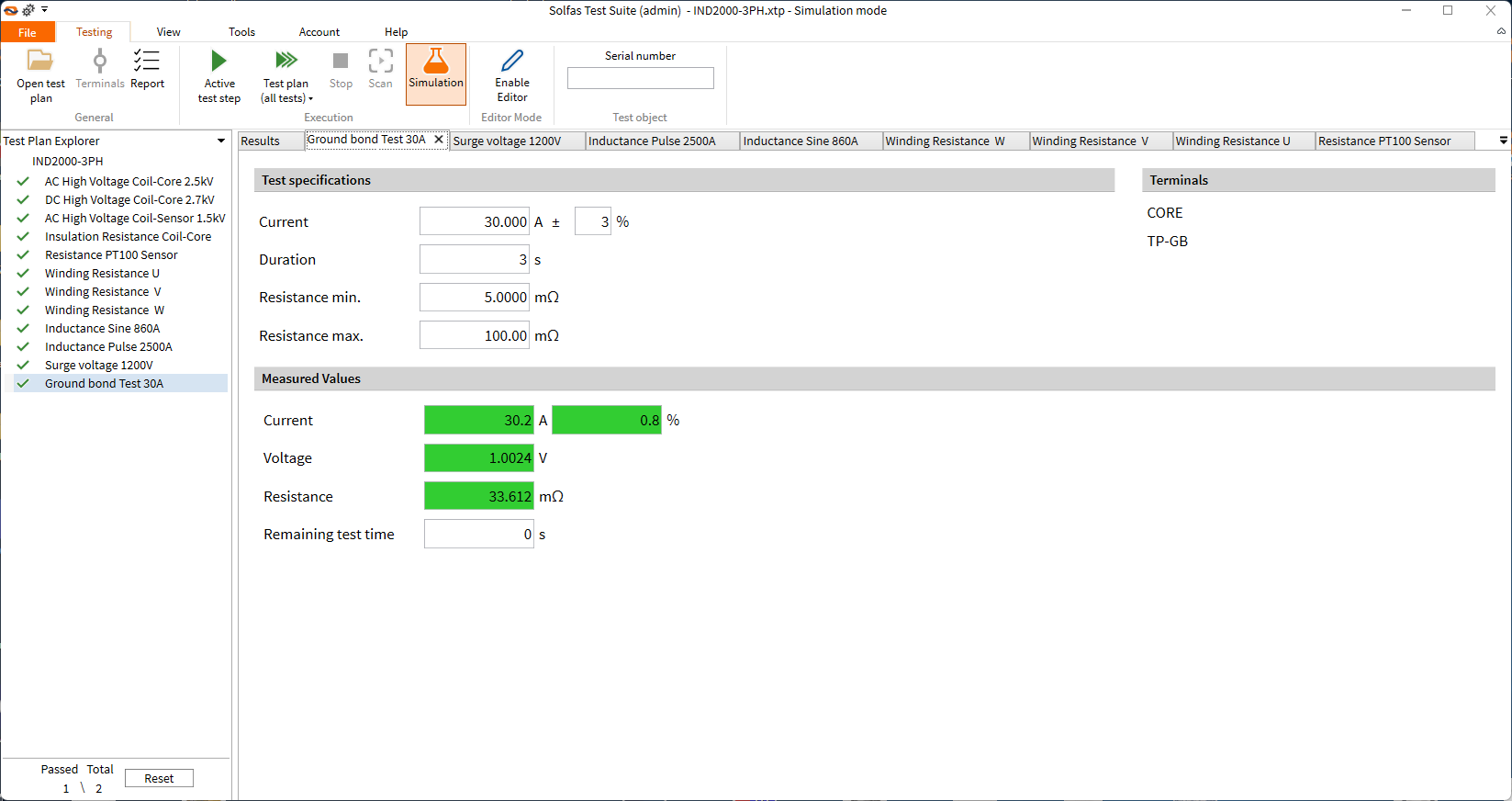

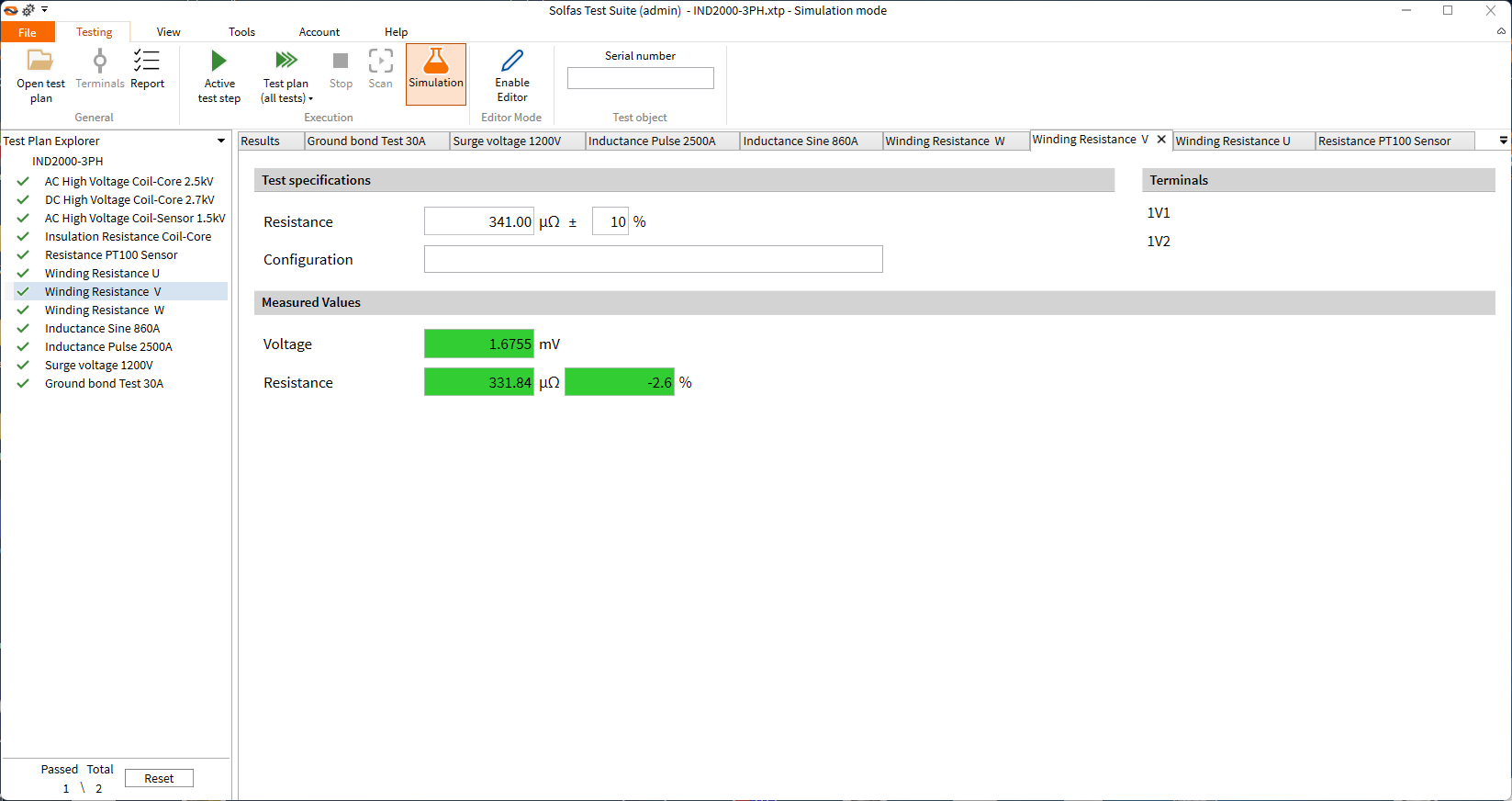

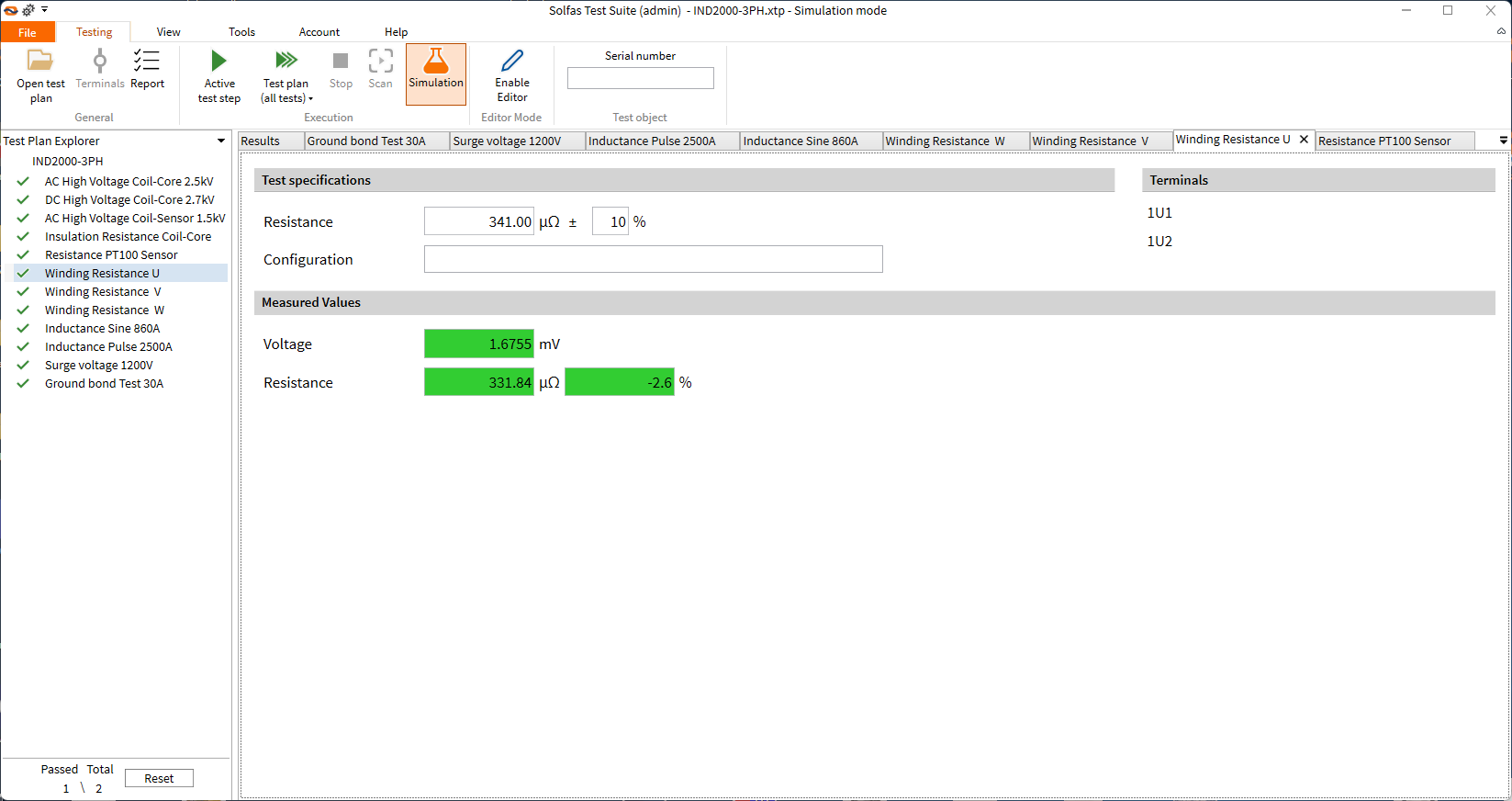

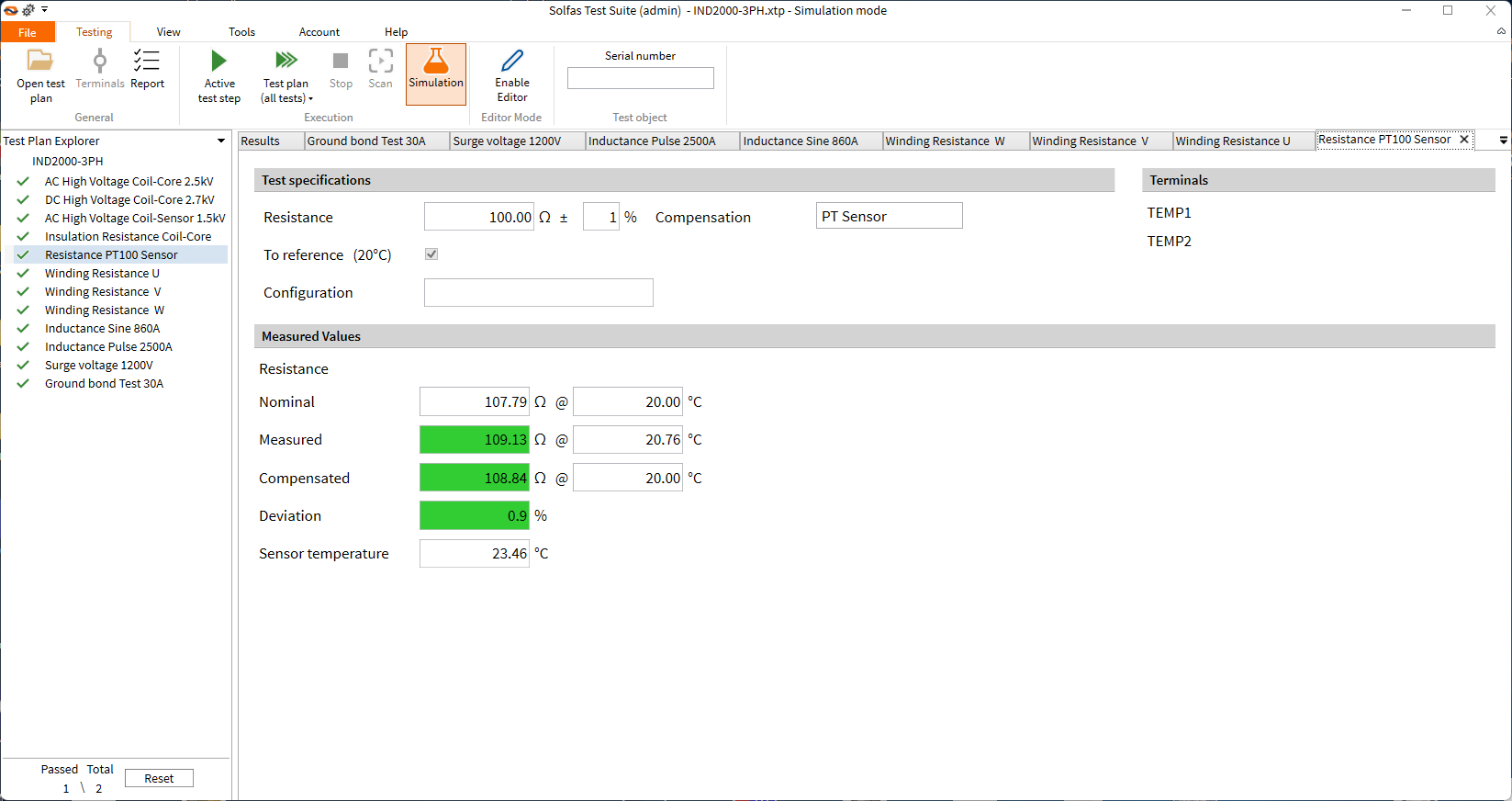

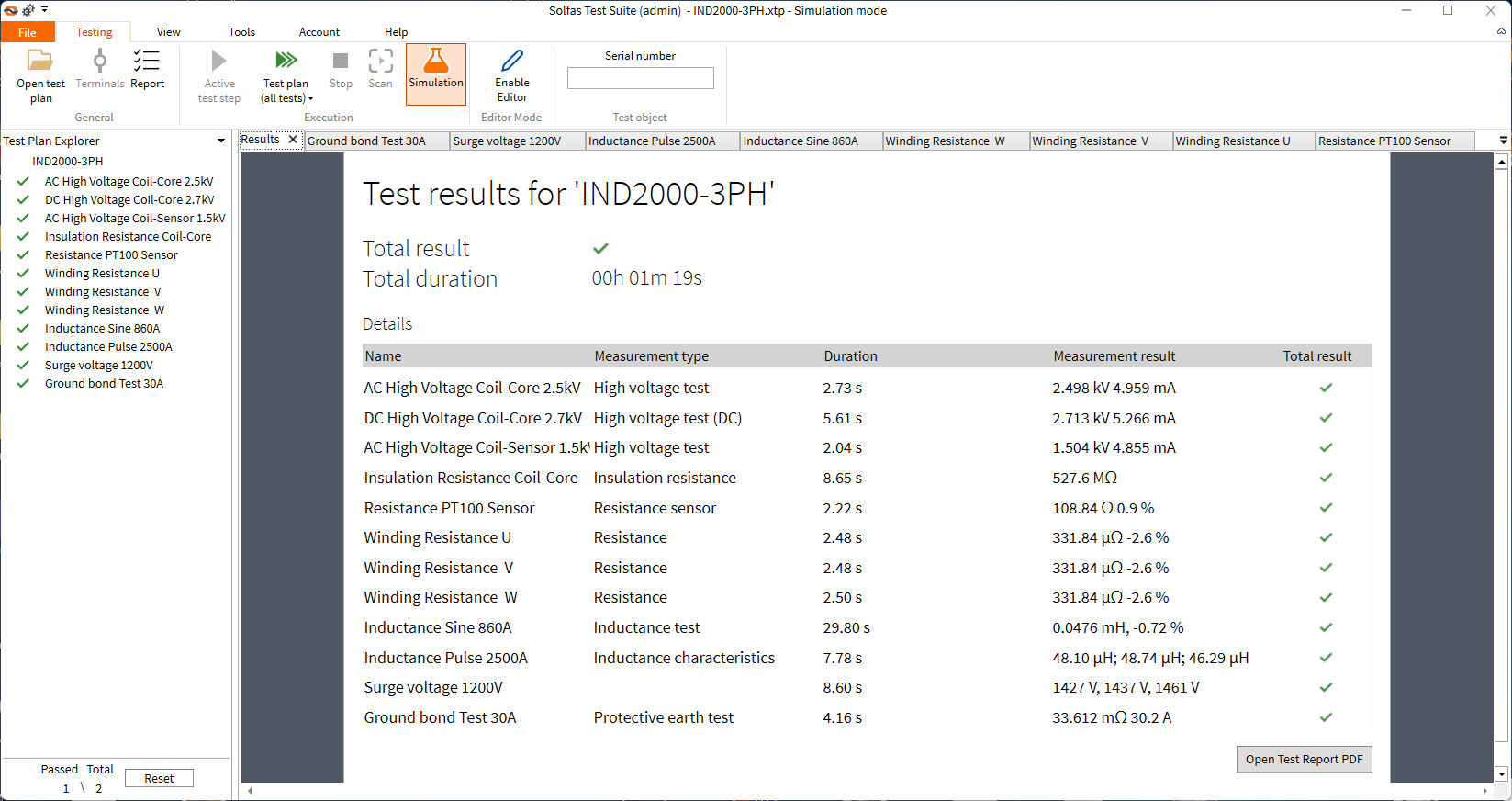

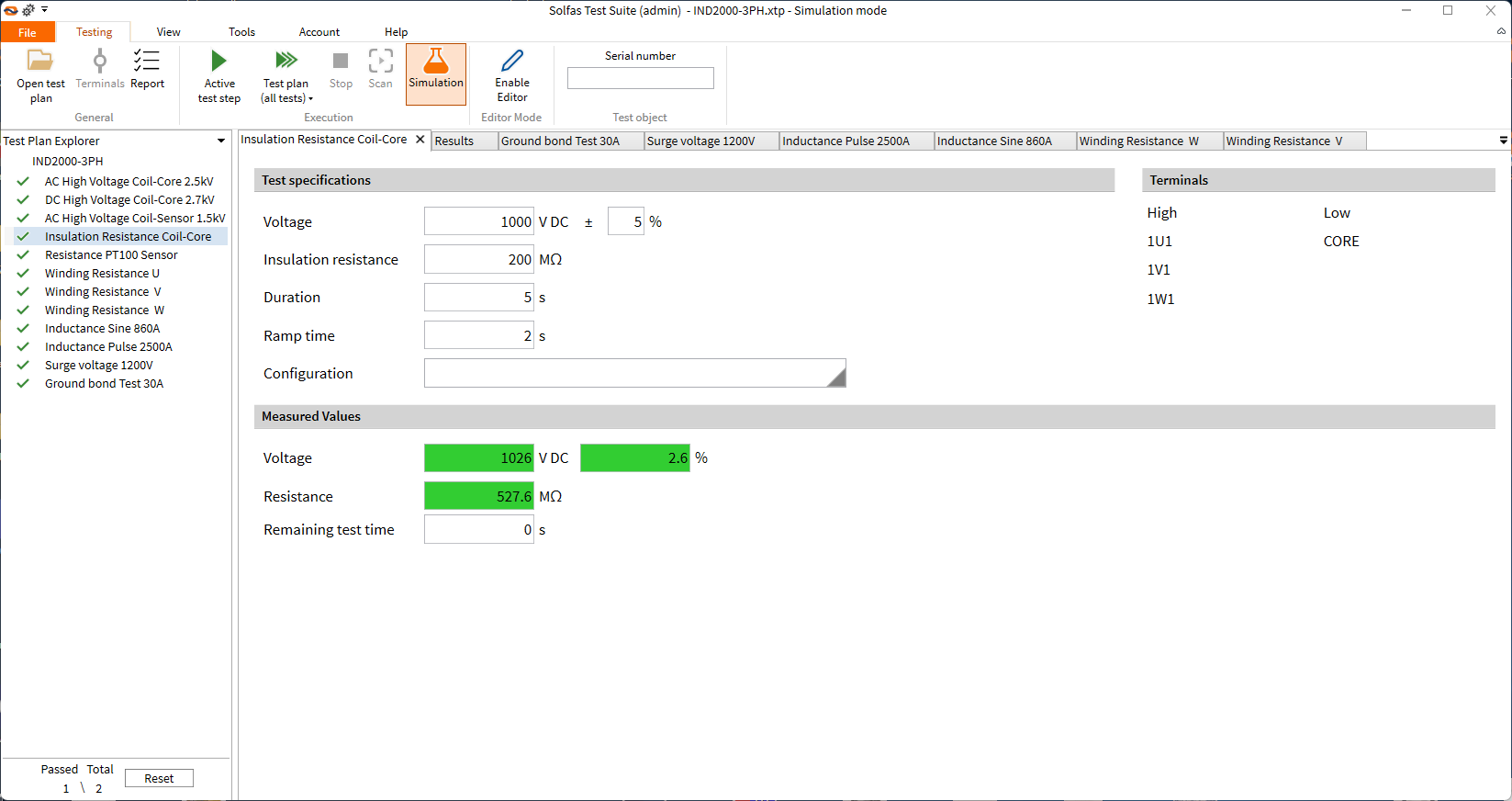

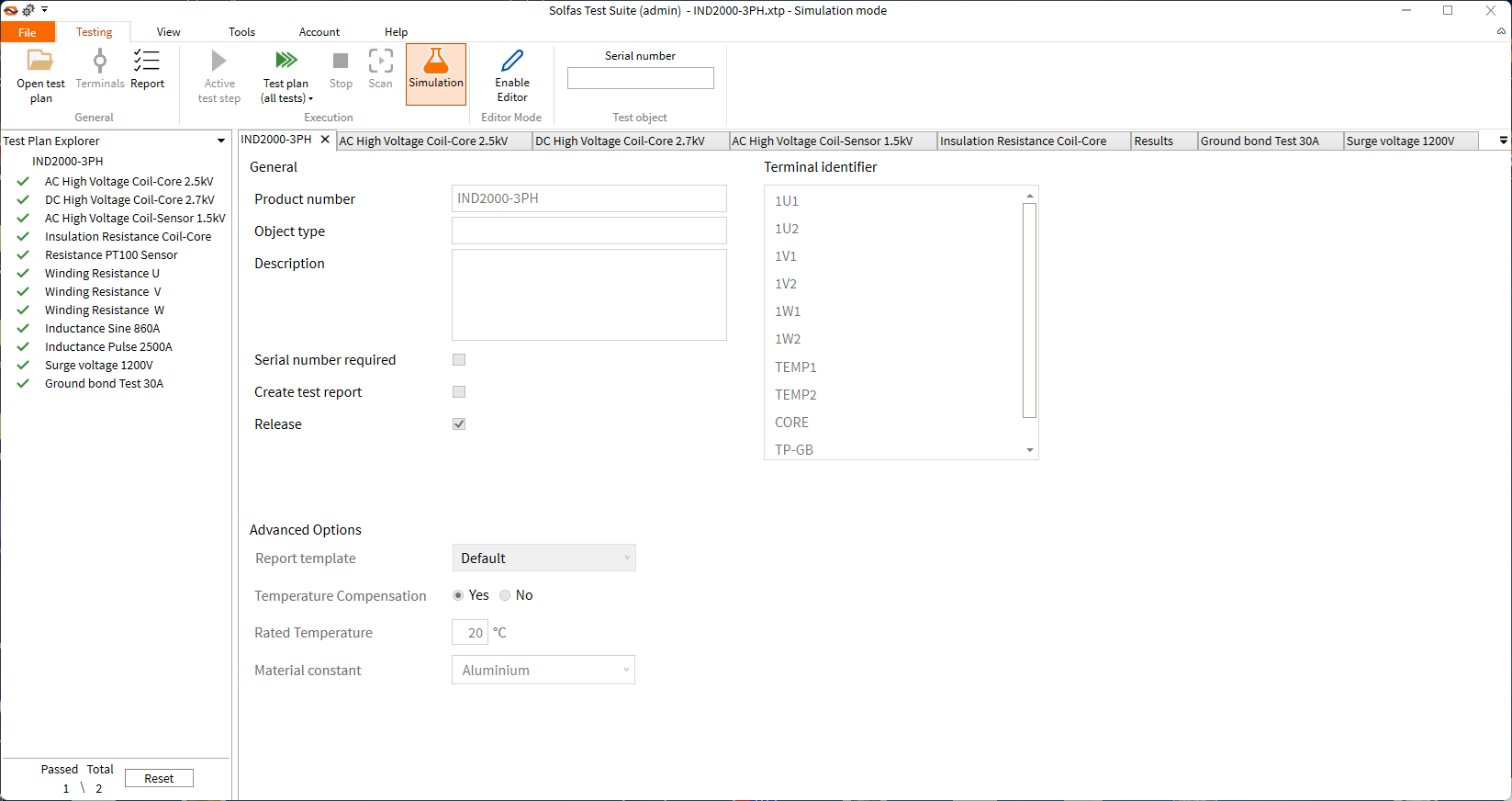

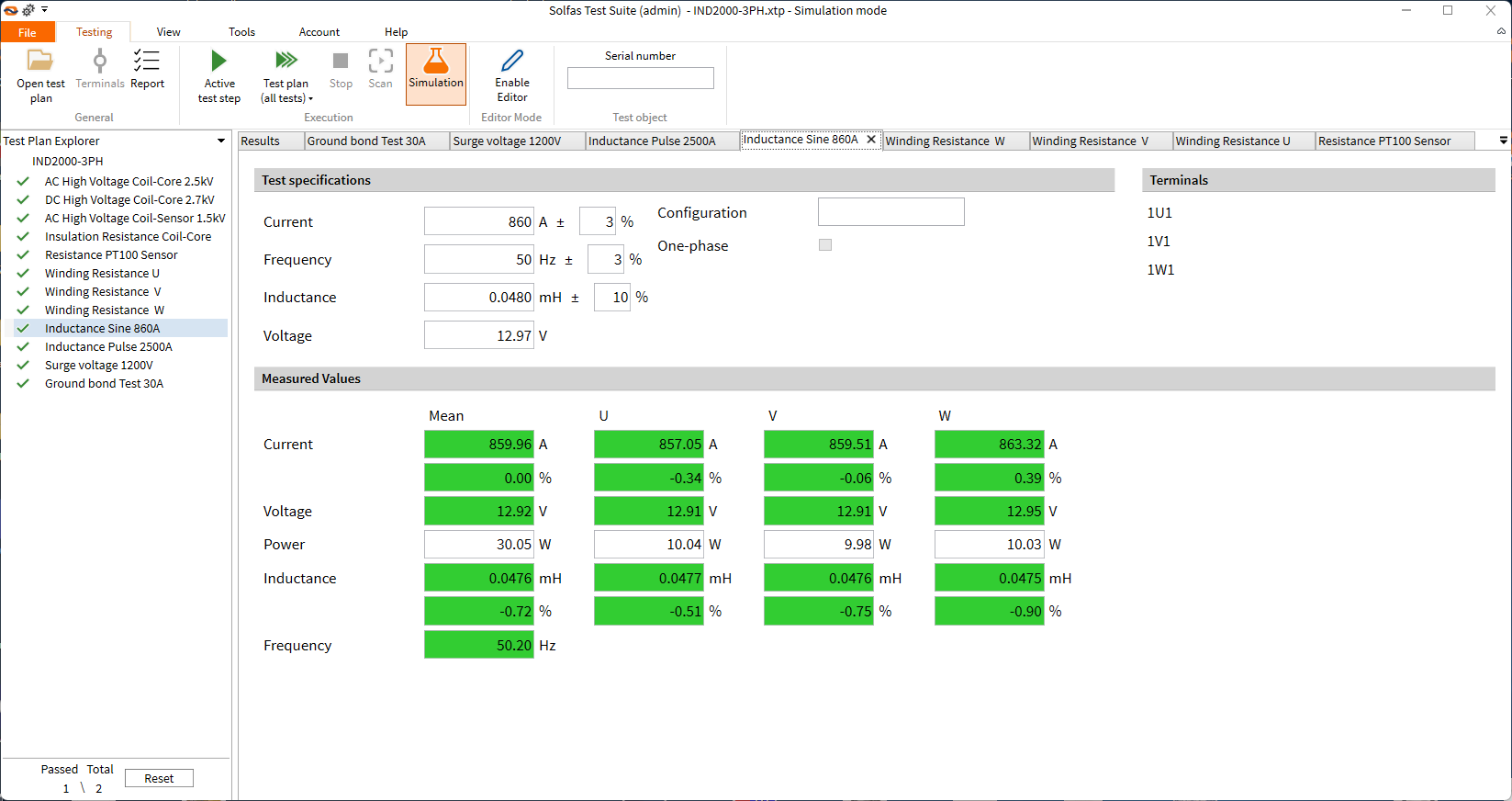

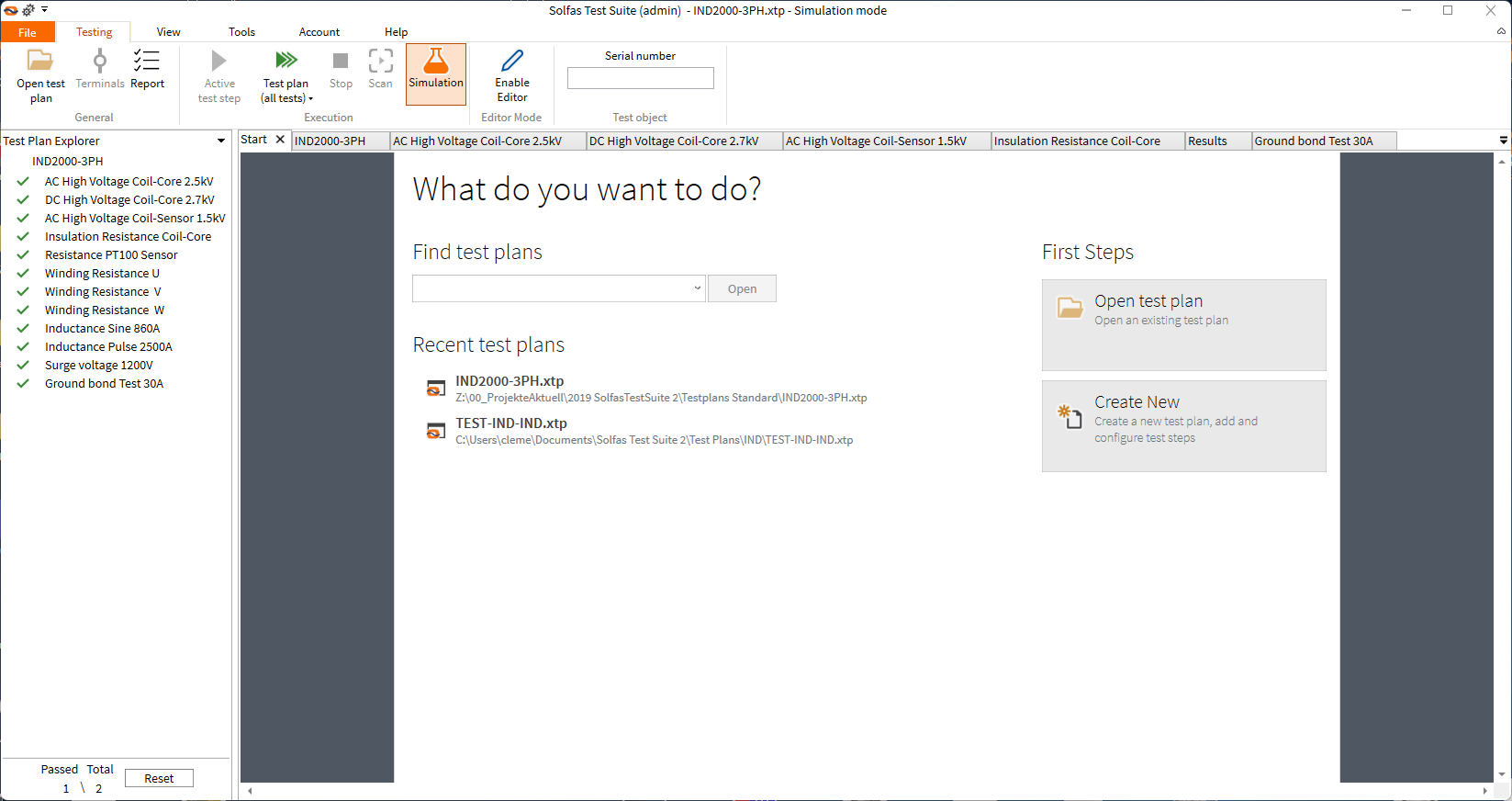

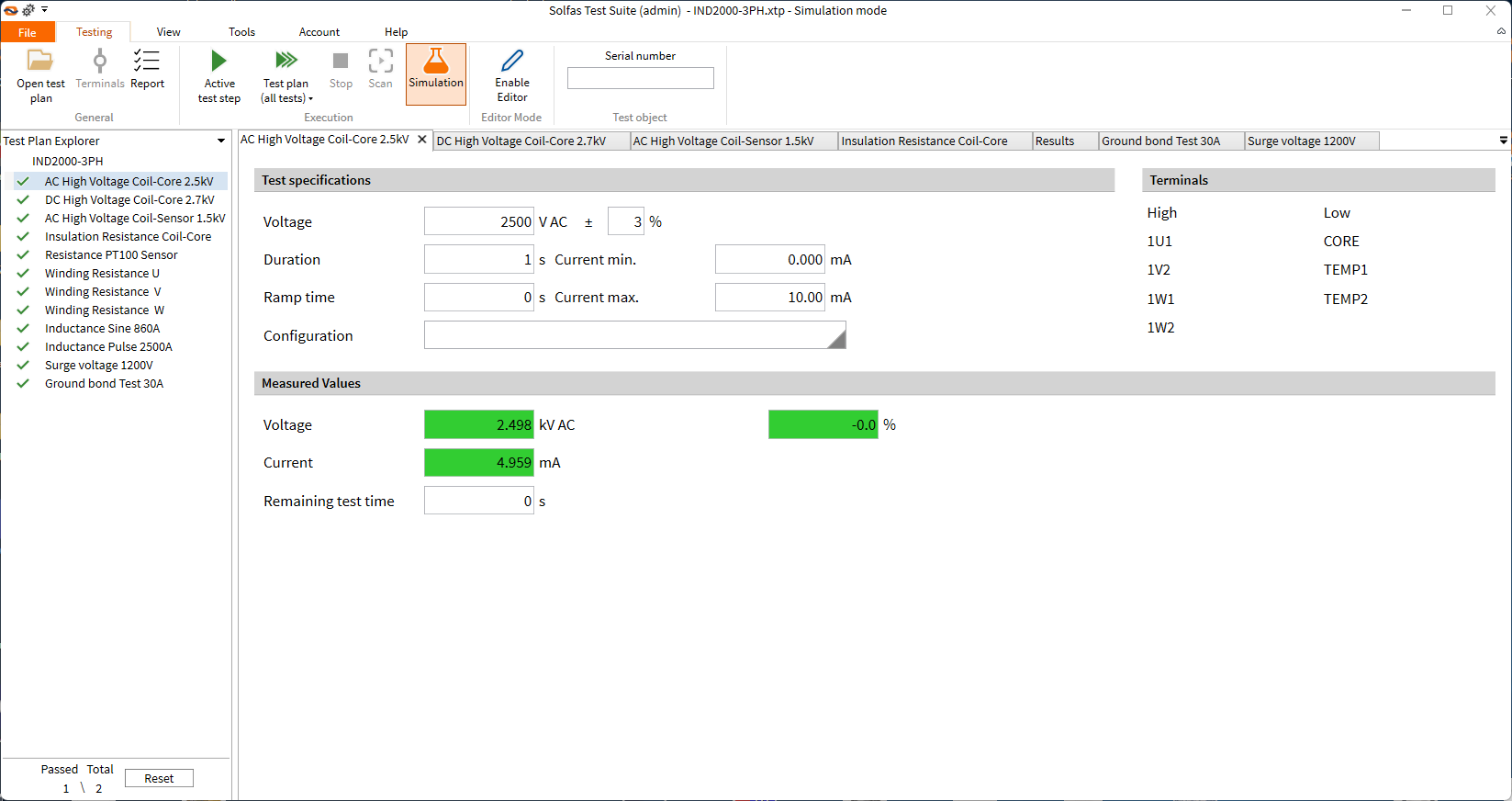

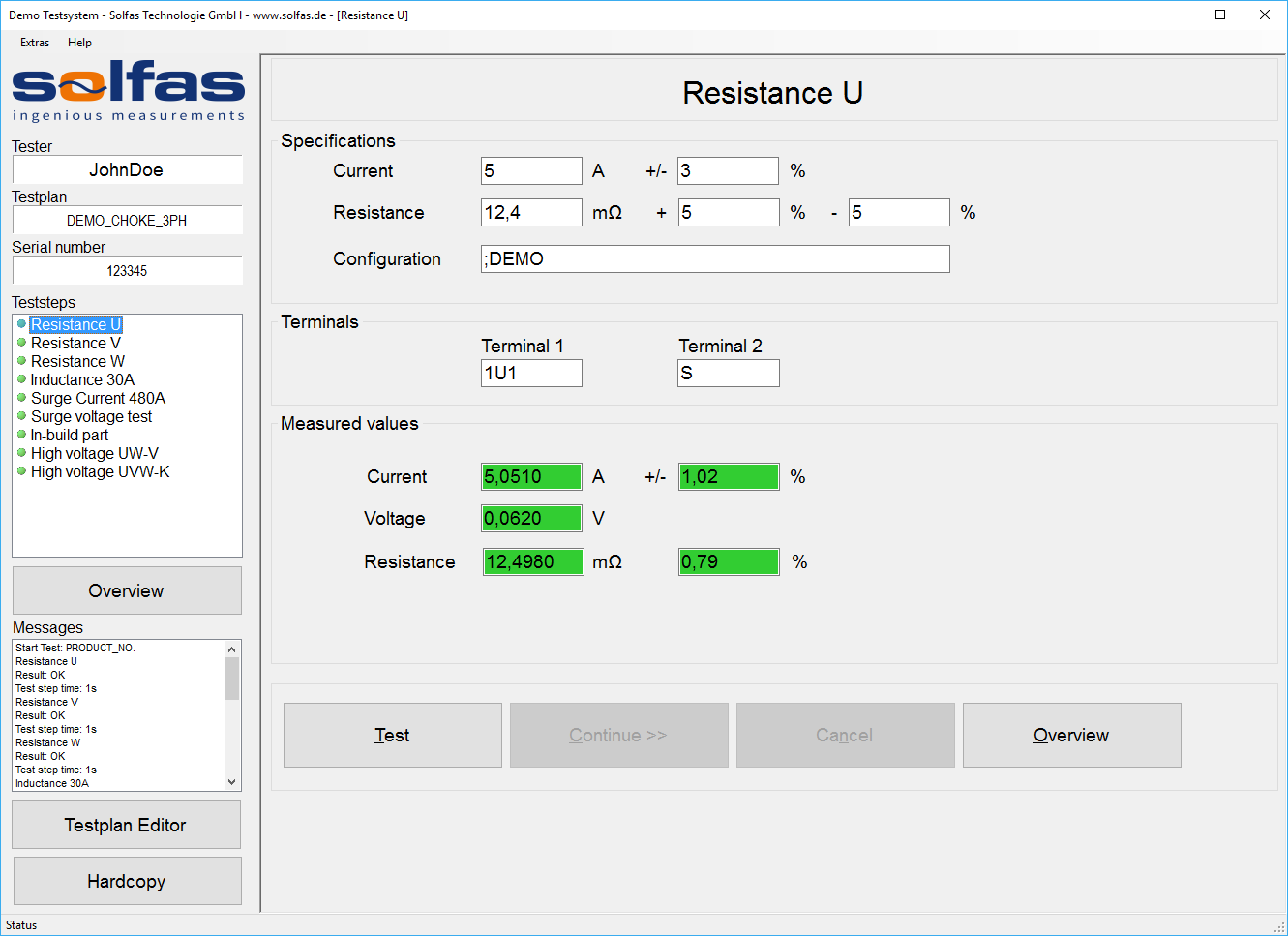

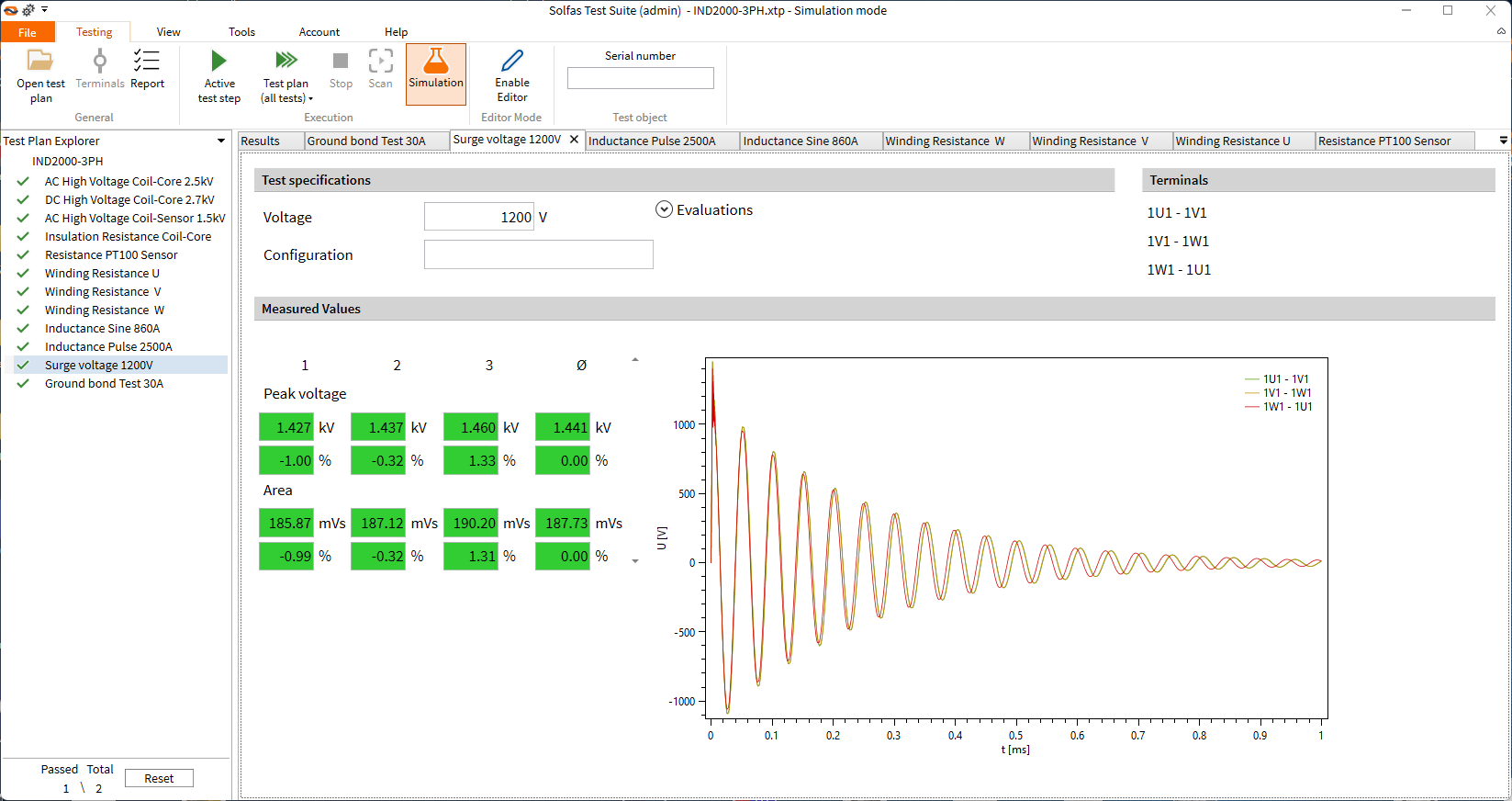

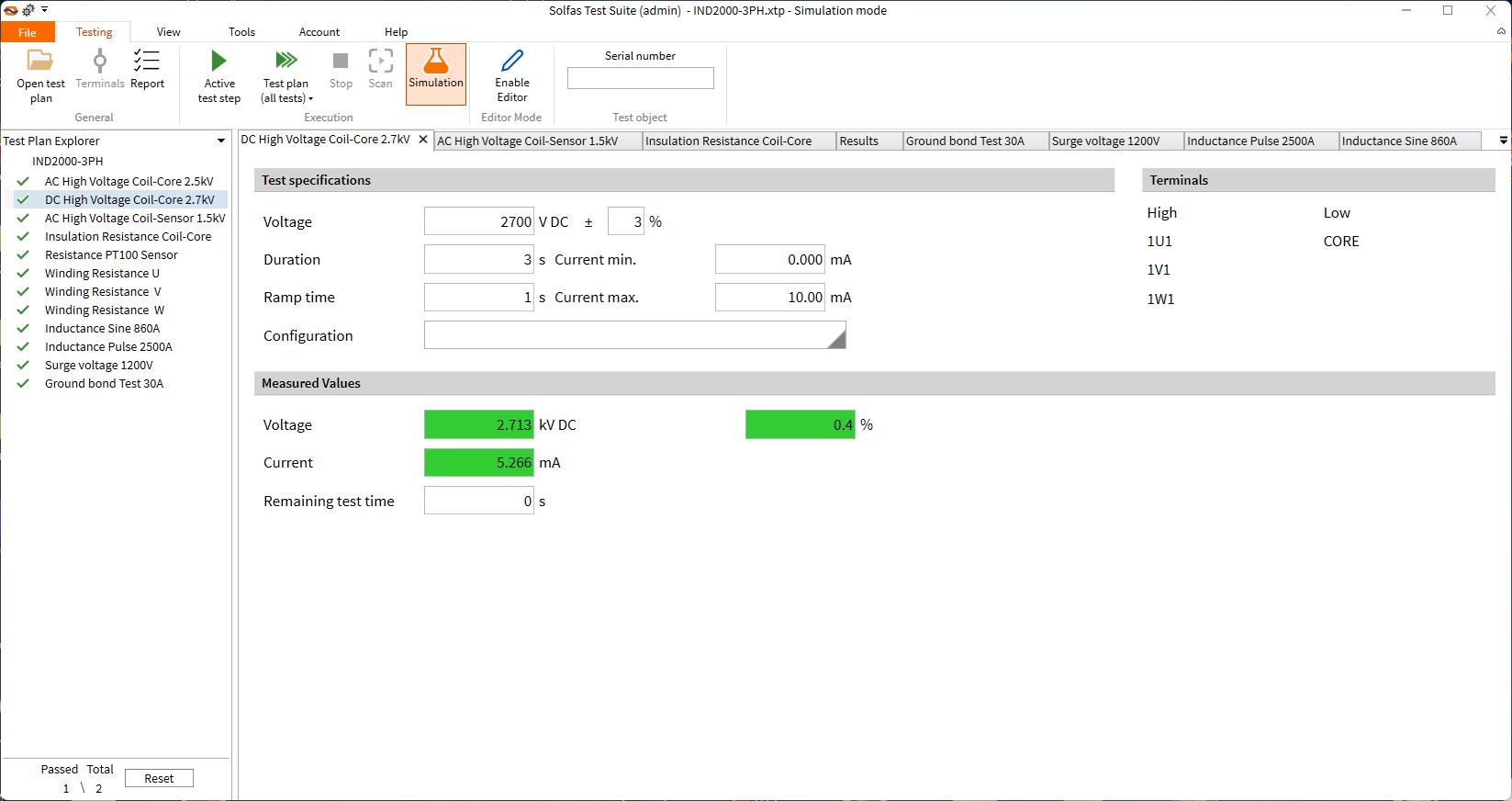

Easy Operation with an intuitive Software Interface

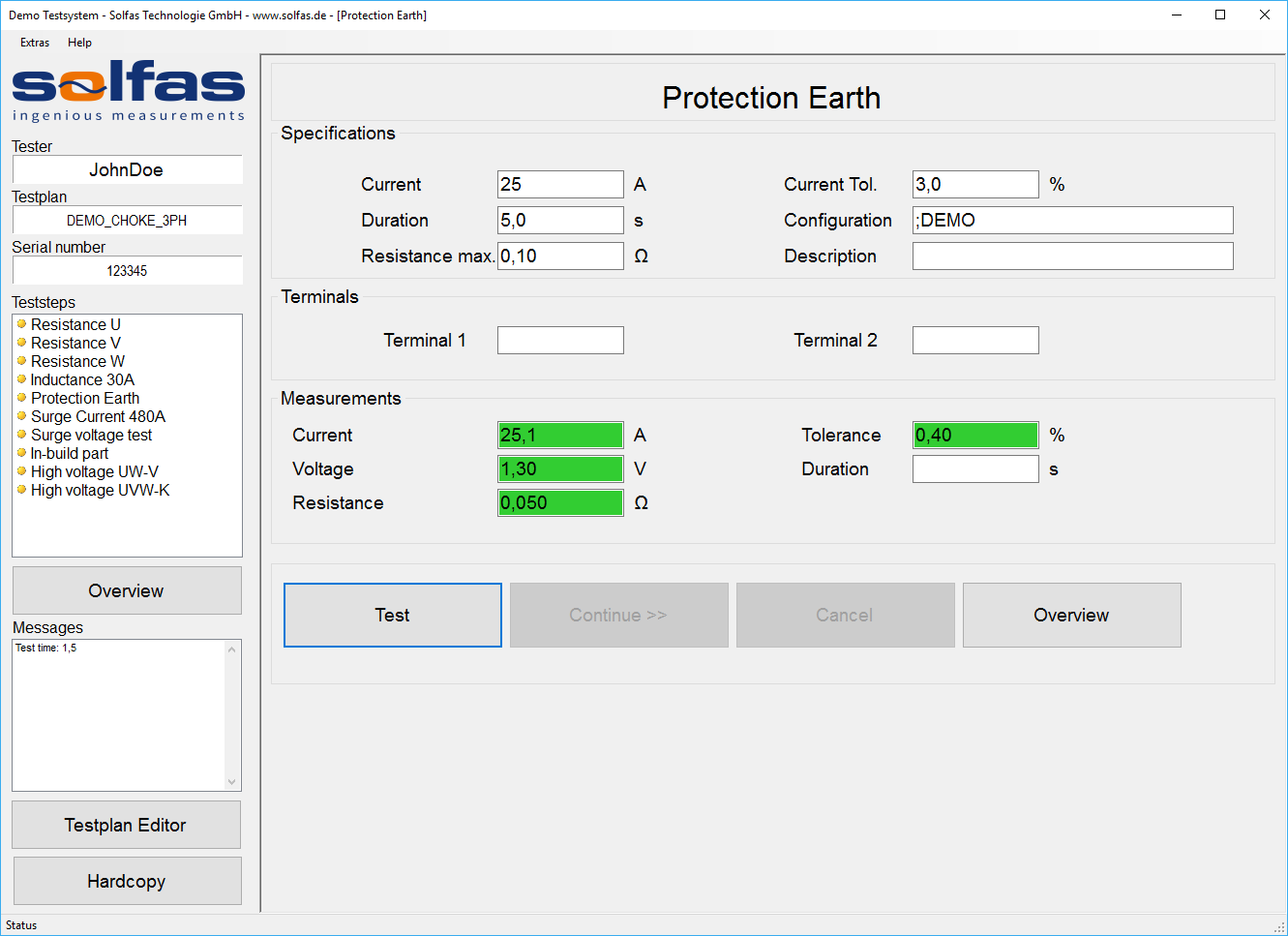

Our mulitlingual testing software allows comfortable operation of the whole test system, even for unexpirienced users.
Create comprehensive Reportings
Transform your test results into machine readable outputs like xml or csv or create managment reports and test certificates in PDF or Excel file format.
Full Characterisation

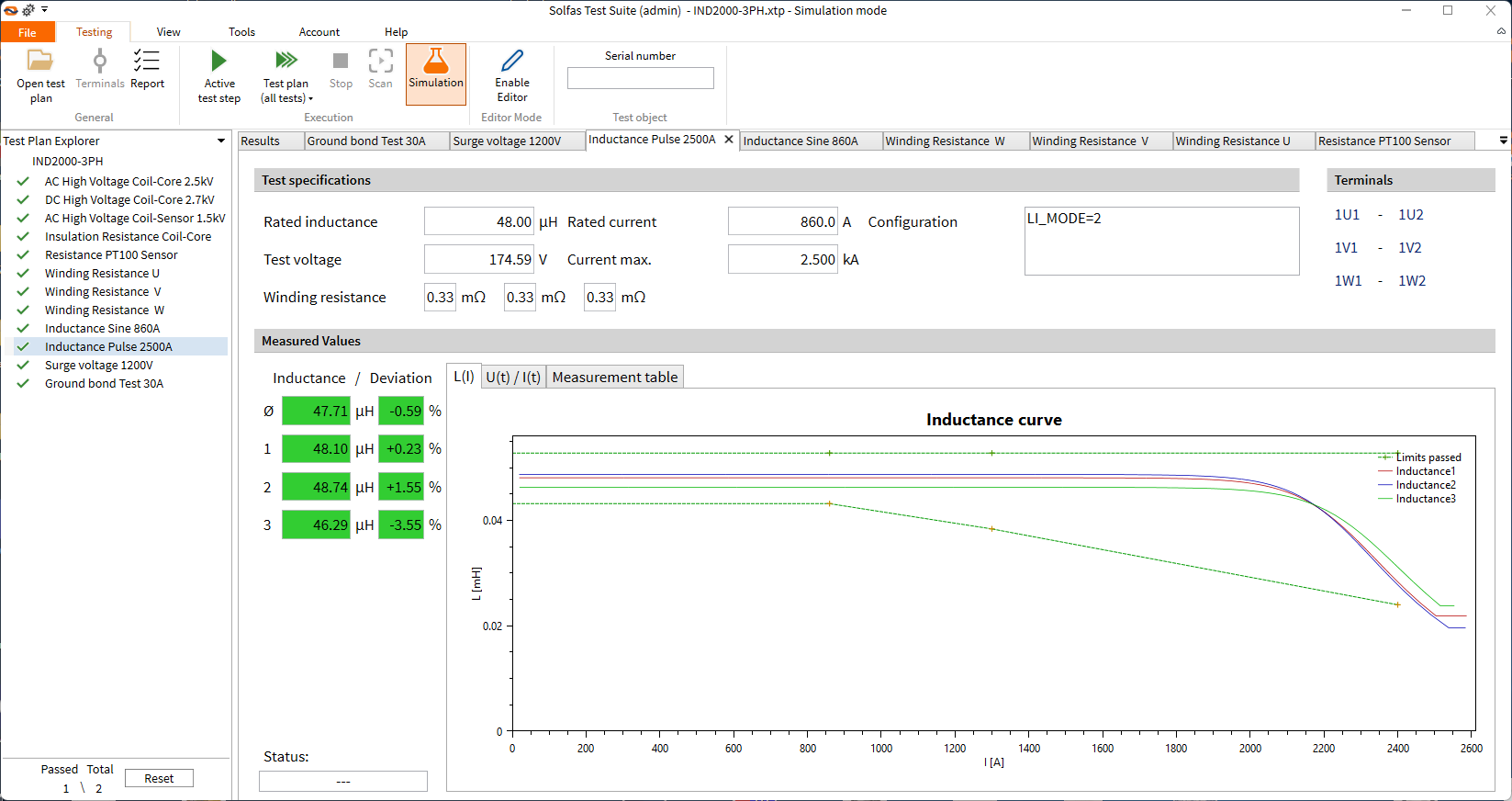

The IND2000 system offer an AC sine current inductance measurement as well as an pulse current measurement to allow a full characterization of the choke, even beyond saturation.
Precision Measurements
The AC sine inductance is measured with a precision power analyser, the saturation measurement is performed with the LI4000 High Current Inductance Analyser.
Click here to see the LI-Series
| Model | IND2000 | IND2100 | IND2200 | IND2400 |
|---|---|---|---|---|
| Output power | Impulse only | 10kVA | 20kVA | 40kVA |
| Output power ranges Sine measurement |
– | 24V 250A 48V 125A 100V 60A 200V 30A 400V 15A |
24V 500A 48V 250A 100V 120A 200V 60A 400V 30A |
24V 1000A 48V 500A 100V 240A 200V 120A 400V 60A |
| Output frequency | – | 50Hz-200Hz | ||
| Inductance measurement | – | Precision power meter, Basic accuracy 0.04% | ||
| Pulse current inductance measurement | Energy 3000J, Current up to 4000A, Voltage up to 450V | |||
| Winding resistance | 4- wire measurement, basic accuracy 0.2% | |||
| High voltage test | 0.1 … 6kV AC, 500VA | |||
| Surge voltage test (Option) | 0.3 … 3kV | |||
| PE conductor test (Option) | Measurement current 10 … 25A AC | |||
| Safety features | Emergency stop button loop, safety circuit for test cabin doors, warning lamps Complete solution for safe testing according to EN50191 |
|||
| Dimensions (WxHxD) | 600x2100x600mm | 1200x2100x600mm | 1200x2100x600mm | 1800x2100x600mm |
| Weight | 270kg | 460kg | 540kg | 730kg |
- PC controled test system
- Comfortable , multilingual software for operation
- Free configurable test flow
- Saturation test with up to 4000A
- Sine inverter power supply
- Safety according to EN50191
| ORDER NUMBER | DESCRIPTION |
|---|---|
| IND2100 | Power Choke Test System Sine current output up to 250A Pulse current output up to 4000A |
| IND2200 | Power Choke Test System Sine current output up to 500A Pulse current output up to 4000A |
| IND2400 | Power Choke Test System Sine current output up to 1000A Pulse current output up to 4000A |
