Project Description

Get your offer

Highlights

This solution was specially designed for performance and heat run tests at industrial fans according to the standard ISO 5801.

  • Industrial Fans Performance Testing

  • Multi Device Data Logger System

  • High Precision Calibrated Instruments

  • Induvidual Customised Software

Requirements

  • Remote Control
  • Portable and easy to use System
  • High Accuracy Calibrated Instruments
  • Measurements according to ISO 5801
  • Export to Excel

Challenges

Energy efficiency plays an increasingly important role in the development of industrial fans.
The challenge is the simultaneous, precise recording and merging of different measuring variables at the test setup.

Our Solution

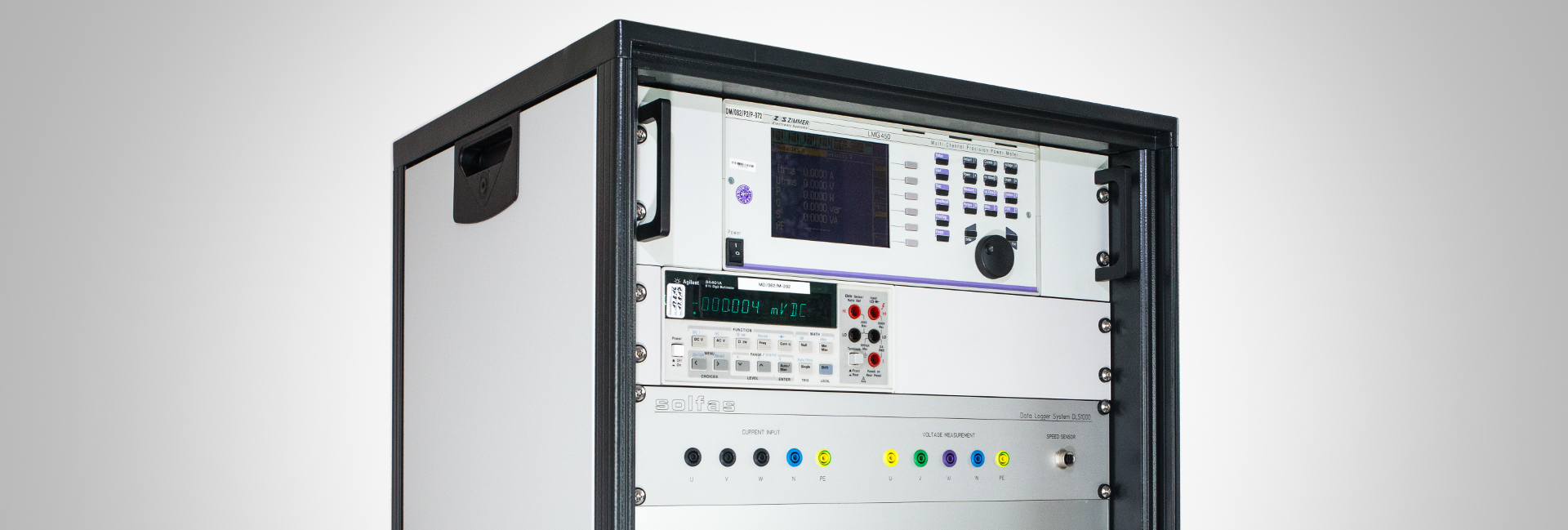

The recording of all electrical values, pressure, temperature, sound level and rotation speed is carried out with a portable unit. Our customized data logger software controls all instruments comfortably over WLAN and transfers the measurement data to the PC, where they are displayed, stored, exported and evaluated.

  • 3 Phase Voltage, Current and Power
  • Differential Pressure
  • Sound level
  • Rotation Speed
  • Temperature
  • Winding Resistance
  • PC Control
  • Remote Control of Intruments
  • Networking with Ethernet and WLAN
  • Customized Data Logger Software
  • Export to Excel
  • Consulting
  • Planning
  • Rack construction
  • Software development
  • Commissioning on site
  • Operator training
