Distribution Transformer Testsystem TTS1100A

For transformers with up to 2.5 MVA

All Routine Test Steps - Comfortable Software and Reporting

Distribution Transformer Test System TTS1100A 2018-01-12T17:08:05+00:00

Project Description

Get your offer

Highlights

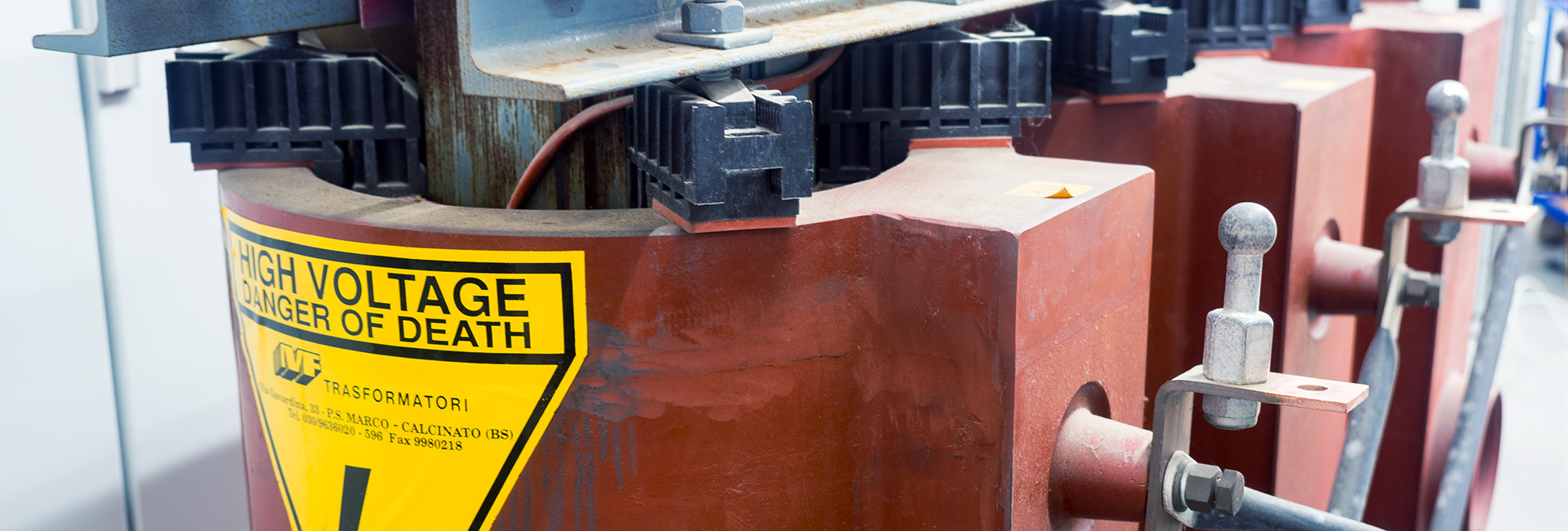

This test system solution was designed for routine tests of medium voltage distribution transformers according to IEC60076.

It is optimized for testing transformers with up to 2.5MVA and rated voltages up to 30 kV.

  • 100kVA Power Supply

  • Voltage up to 1500V

  • Current up to 120A

Challenges

For an efficient use in industrial production a test system needs the ability to adapt to test requirements of a broad product range while keeping the testing process easy, efficient and safe.

The special requirement for this system is the capability to do short circuit tests at power transformers with various rated input and short circuit voltages,  induced withstand voltage  tests and no load test with one flexible power supply.

Our Solution

Our compact inverter power supply provides all required test voltages with variable frequency in the range 50-150Hz. 4 power ranges are available for optimised adaption to the various test requirements of distribution transformers.
The remote control of all components and automatic switching of the measuring points during voltage ratio test allow comfortable testing from the control desk and increase productivity and safety.
This system is fully equipped with a safety control unit, e-stop buttons, safety doors, safety fence and a light curtain for test area according to EN 50191 to provide maximum safety for the operators during every day work.

Test-Steps

The following teststeps are part of this custom solution.

  • Winding Resistance Measurement

  • Voltage Ratio and Vector Group Measurement

  • Short Circuit Test

  • No Load Test

  • Induced Overvoltage Withstand Test

  • Separate Source AC Withstand Voltage Test

  • Temperature Sensor Test

The Solfas Test Software Suite includes measurements and test steps of all kind. Please click here to learn more about Solfas Test Suite

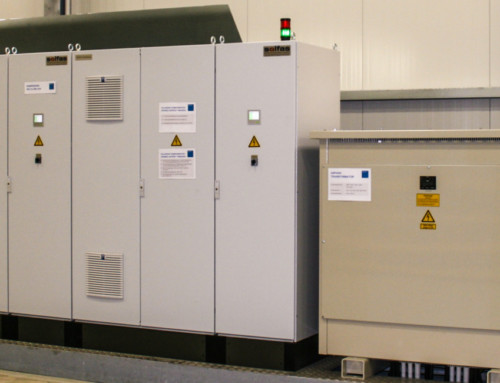

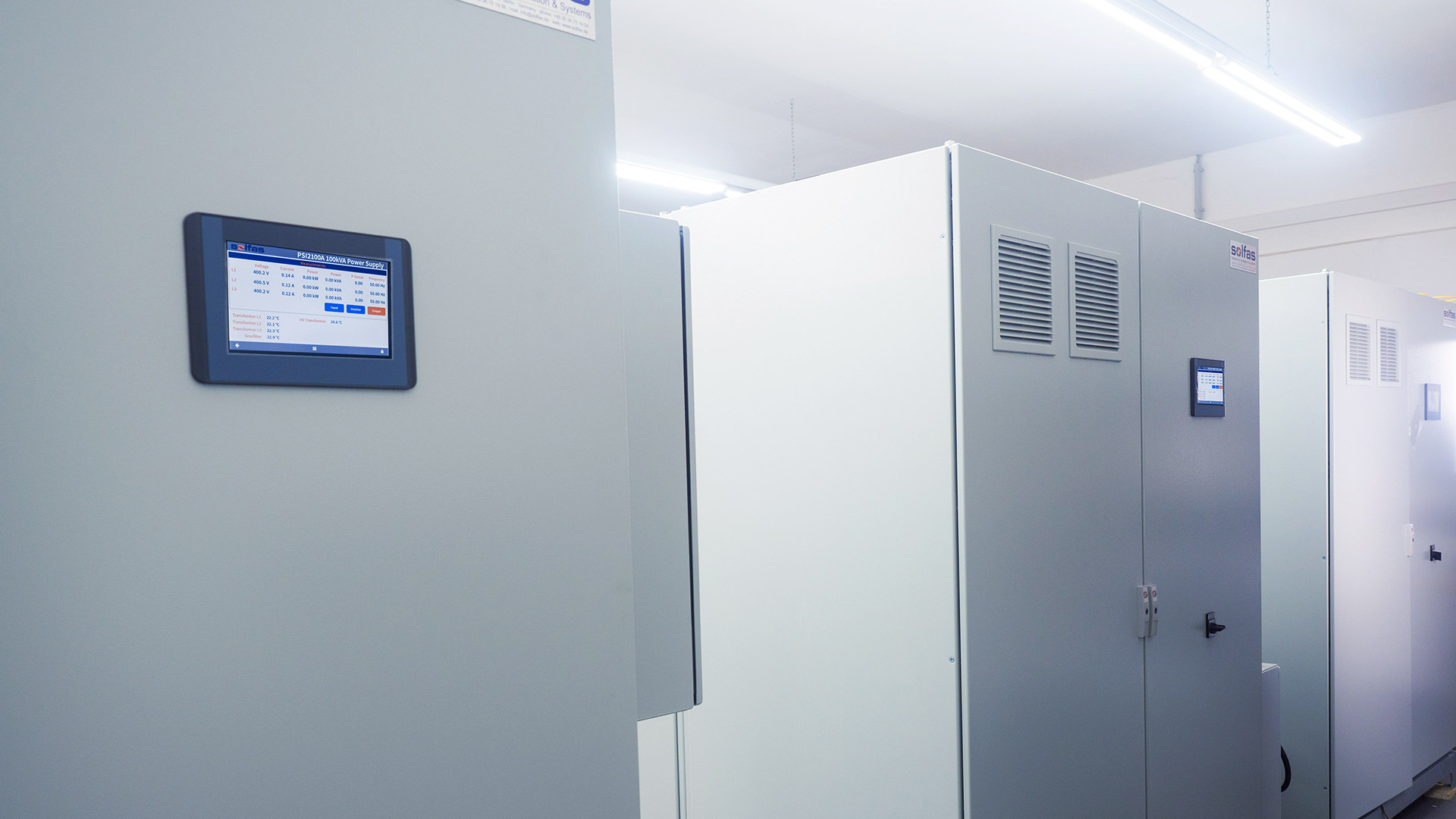

Power Supply 3-phase inverter 100kVA, 50-150Hz
4 power ranges
500V/120A – 750V/80A – 1000V/60A – 1500V/40A

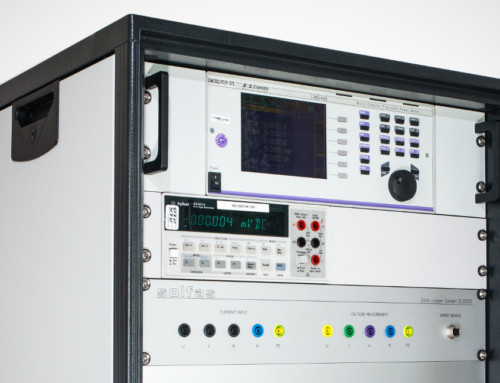

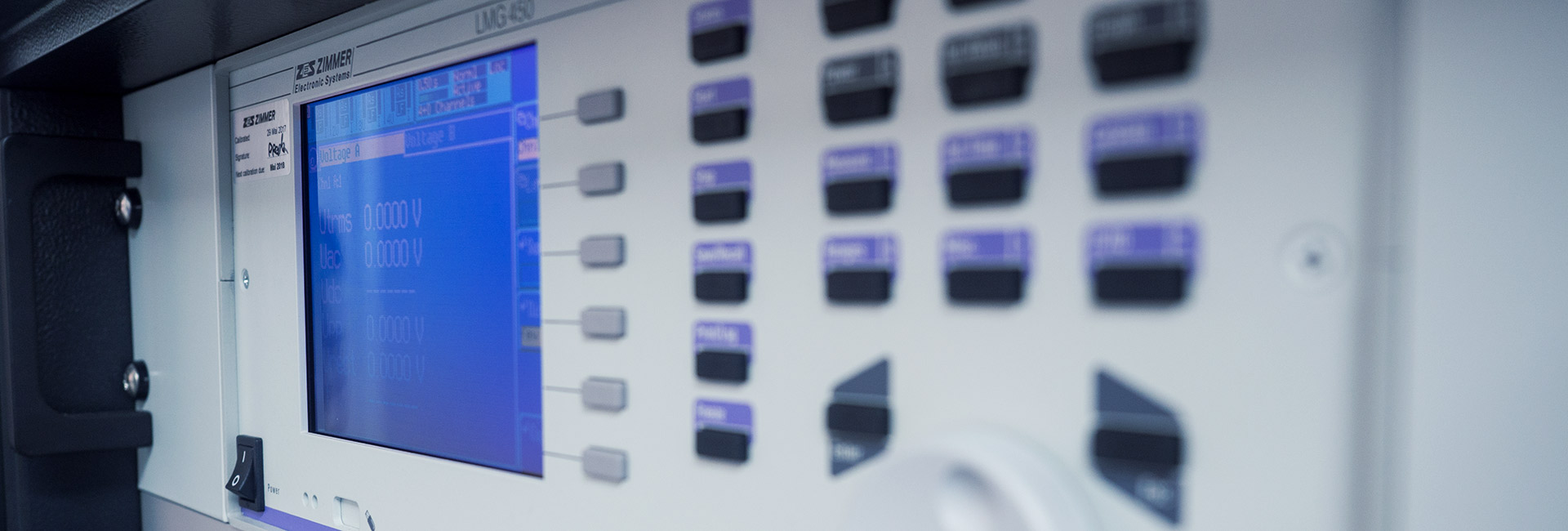

Power Measurement 4-channel precision power meter, basic accuracy 0.1%, voltage measurement up to 1500 VAC

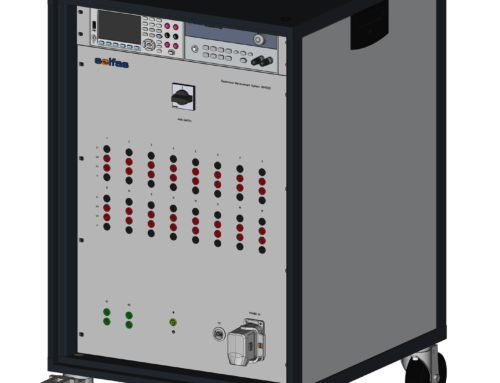

Switching Matrix 8 measuring points 1kV, 1 A
For voltage ratio and vector group test
Winding Resistance 4-wire measurement, resolution 1µΩ
Basic accuracy 0.03%

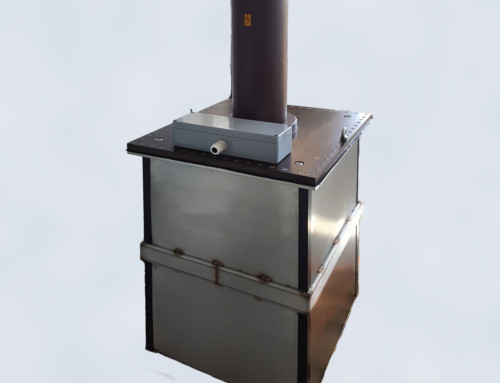

High Voltage Test 1…75kVAC, 200mA
  • 100kVA Sine Inverter Power Supply
  • Measurement Unit with Precision Power Analyzer
  • Automatic switching of measurement points
  • Complete safety system with
    • Emergency stop buttons
    • Warning lamps
    • Safety doors
    • Light curtain
    • Safety fence
  • Consulting
  • Planning
  • System construction
  • Software development
  • Commissioning on site
  • Operator training
